Windstar V6-3.8L VIN 4 (1997)

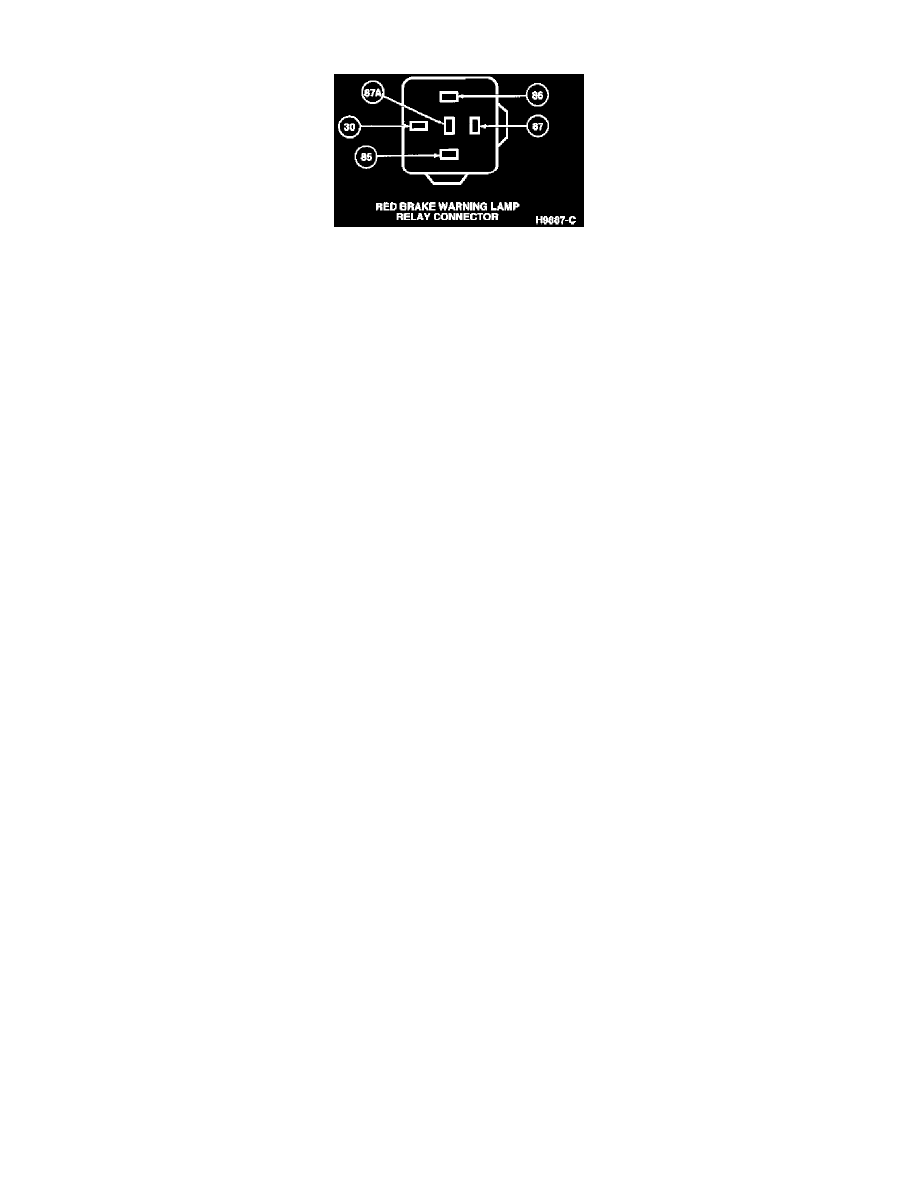

ABS Light: Diagrams
Pin Number
Circuit
Circuit Function
1
296 (W/P)
Fused Accessory Feed No. 1
2
Not Used
3
464 (BK/PK)
Module to Lamp Relay
4
57 (BK)
Ground Circuit
5
162 (LG/R)
Parking Brake Warning Lamp to Parking Brake
Switch
