Canyon 4WD V8-5.3L (2009)

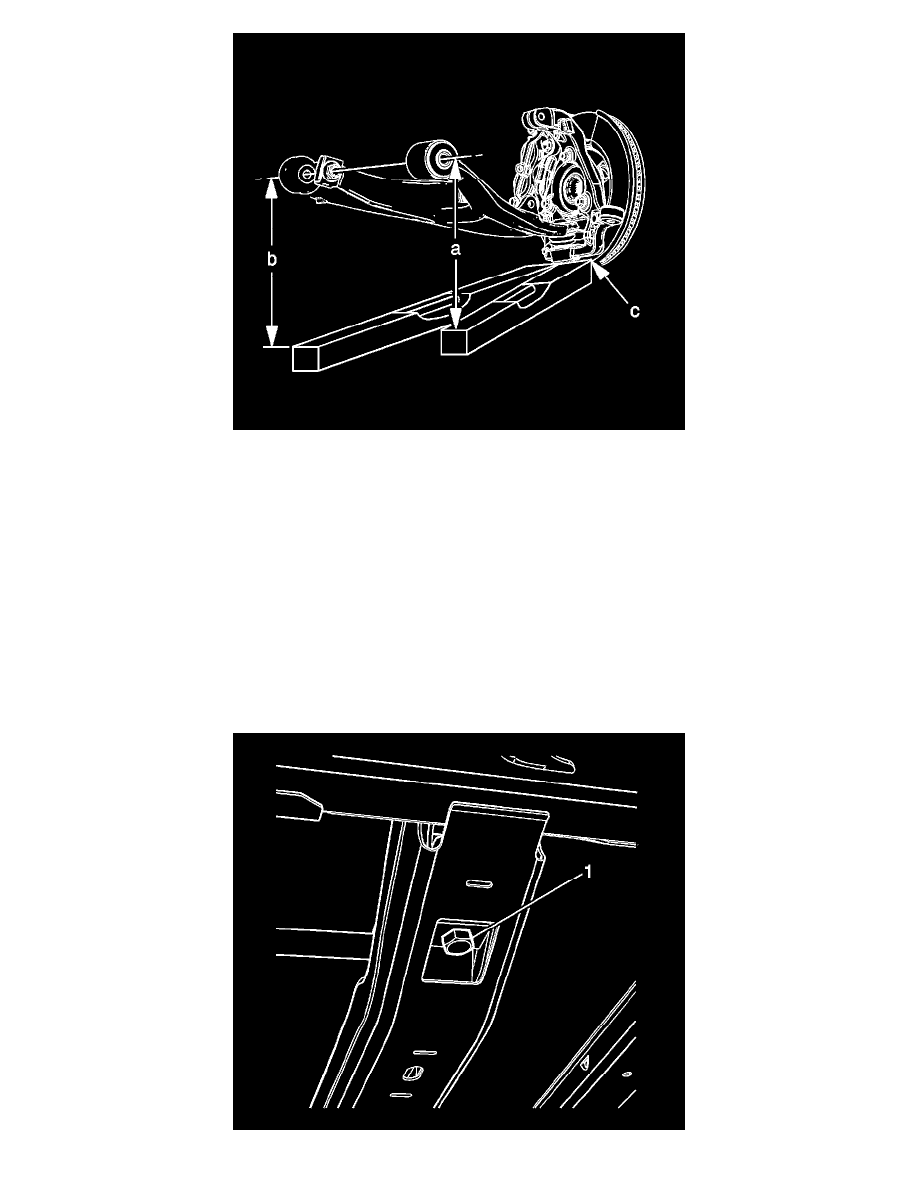

2. With the level on the steering knuckle (C), extend the level directly under the rear of the rear of the front attachment bolt of the lower control arm
(A).
3. While keeping the level in contact with the knuckle reference surface, adjust the level up or down until the bubble indicates it is horizontally level.
4. Extend a tape measure straight down from the center of the attachment bolt. The point where the tape measure and the level intersect is your first
measurement.
5. Keep the top edge of the level on the reference surface of the steering knuckle (C) and move the level directly under the front end of the rear
attachment bolt of the lower control arm (B).
6. Extend a tape measure straight down from the center of the attachment bolt. The point where the tape measure and the level intersect is your
second measurement.
7. Average the 2 readings (add them together, and then divide by 3) and this result is your final Z height number.
8. Repeat steps 1 through 7, a total of 3 times, writing down the results.
9. Average the results (add them together, and then divide by 3) and this result is your final Z height number.
10. Compare your Z height number with the Service Information Z height specification. Refer to Trim Height Specifications (See:
Specifications/Mechanical Specifications/Suspension/System Specifications/Trim Height Specifications).
Z Height Adjustment
