Pressure Regulating Solenoid: Diagrams

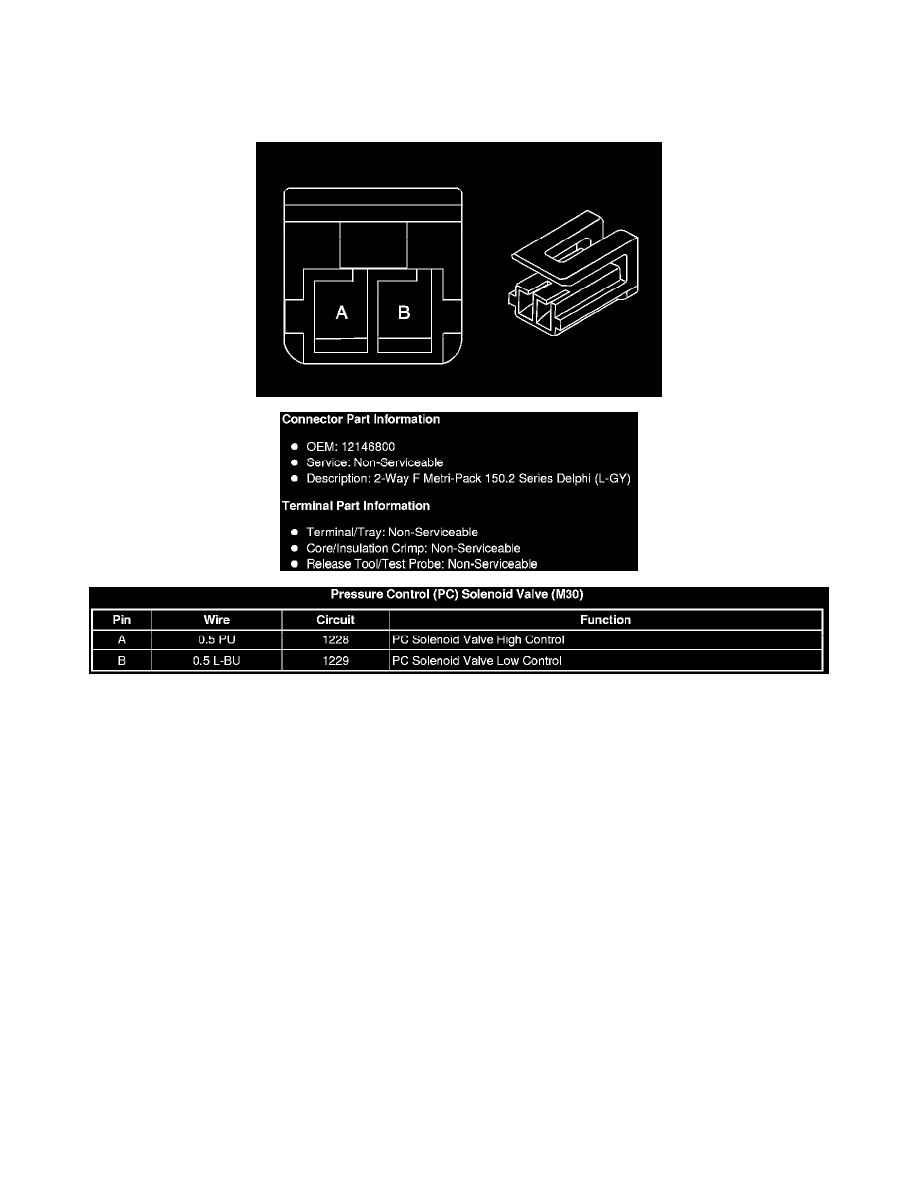

Component Connector End Views

Pressure Control (PC) Solenoid Valve (M30)
