Envoy 4WD L6-4.2L VIN S (2003)
Door Lock Cylinder: Procedures

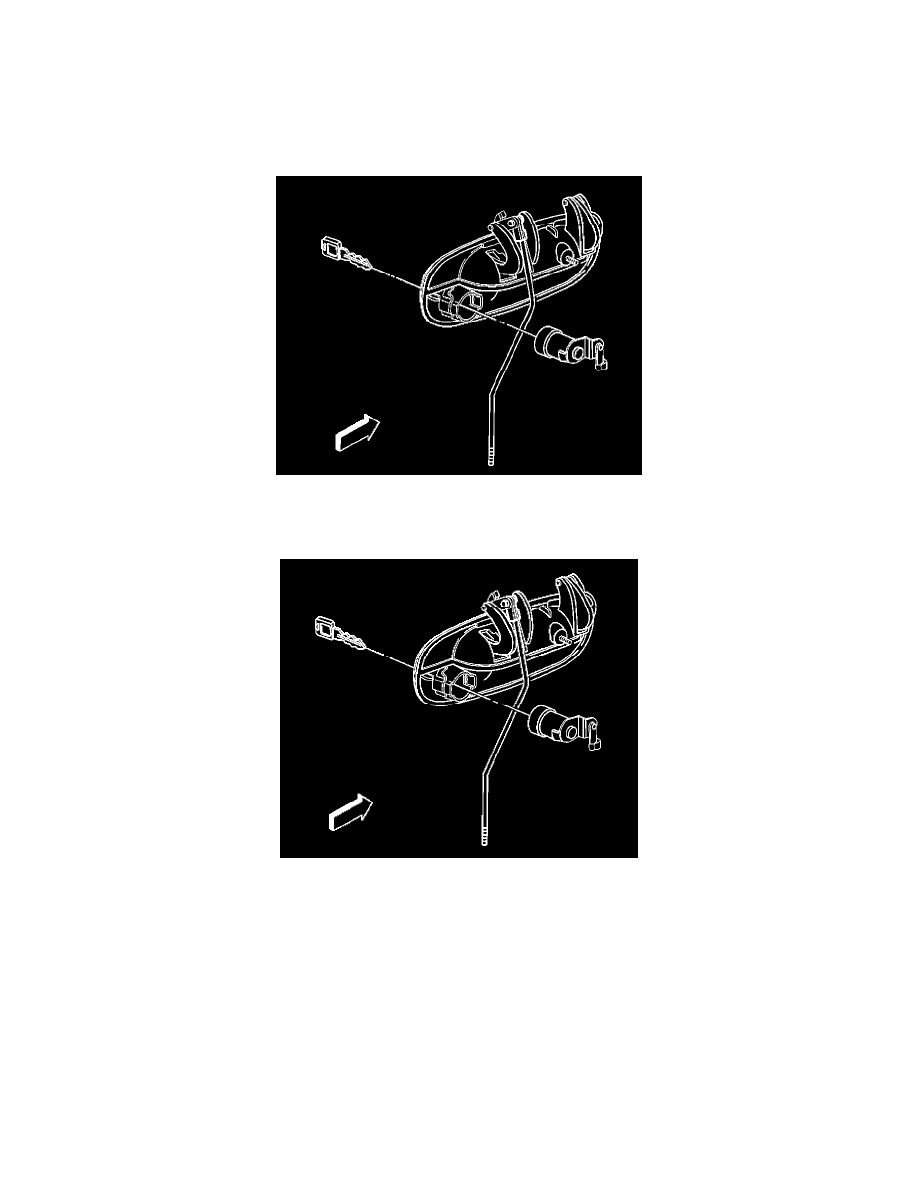

LOCK CYLINDER REPLACEMENT - DOOR
REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Remove the water deflector from the door.
3. Remove the outside handle from the door.
4. Remove the lock cylinder from the door handle.
INSTALLATION PROCEDURE
1. Install the lock cylinder to the door handle.
2. Install the outside handle to the door.
3. Install the water deflector to the door.
4. Install the door trim panel to the door.
