K 1500 Yukon 4WD V8-5.3L VIN Z Flex Fuel (2003)
Accumulator HVAC: Service and Repair
ACCUMULATOR REPLACEMENT
TOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant..

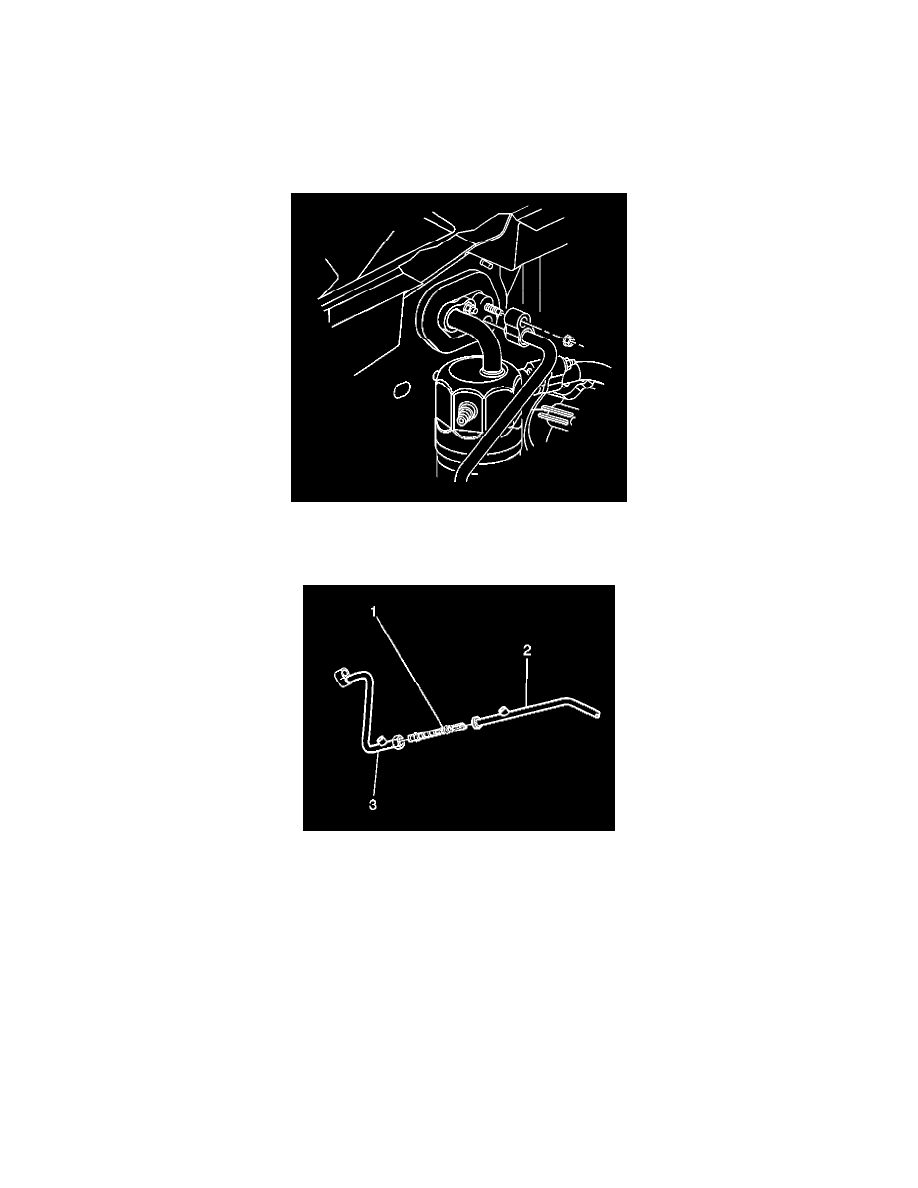

2. Remove the evaporator tube nut from the evaporator.
3. Remove the evaporator tube from the evaporator.
4. Remove the nut from the evaporator tube (3).
