Relay Box|Diagrams|Page 1791 > < Diagram Information and Instructions|Page 1786

K 1500 Yukon 4WD V8-5.3L VIN Z Flex Fuel (2003)

  • Relays and Modules
  • Relays and Modules - Power and Ground Distribution
  • Relay Box
  • Component Information
  • Diagrams

Page 1
background image

Relay Box: Diagrams

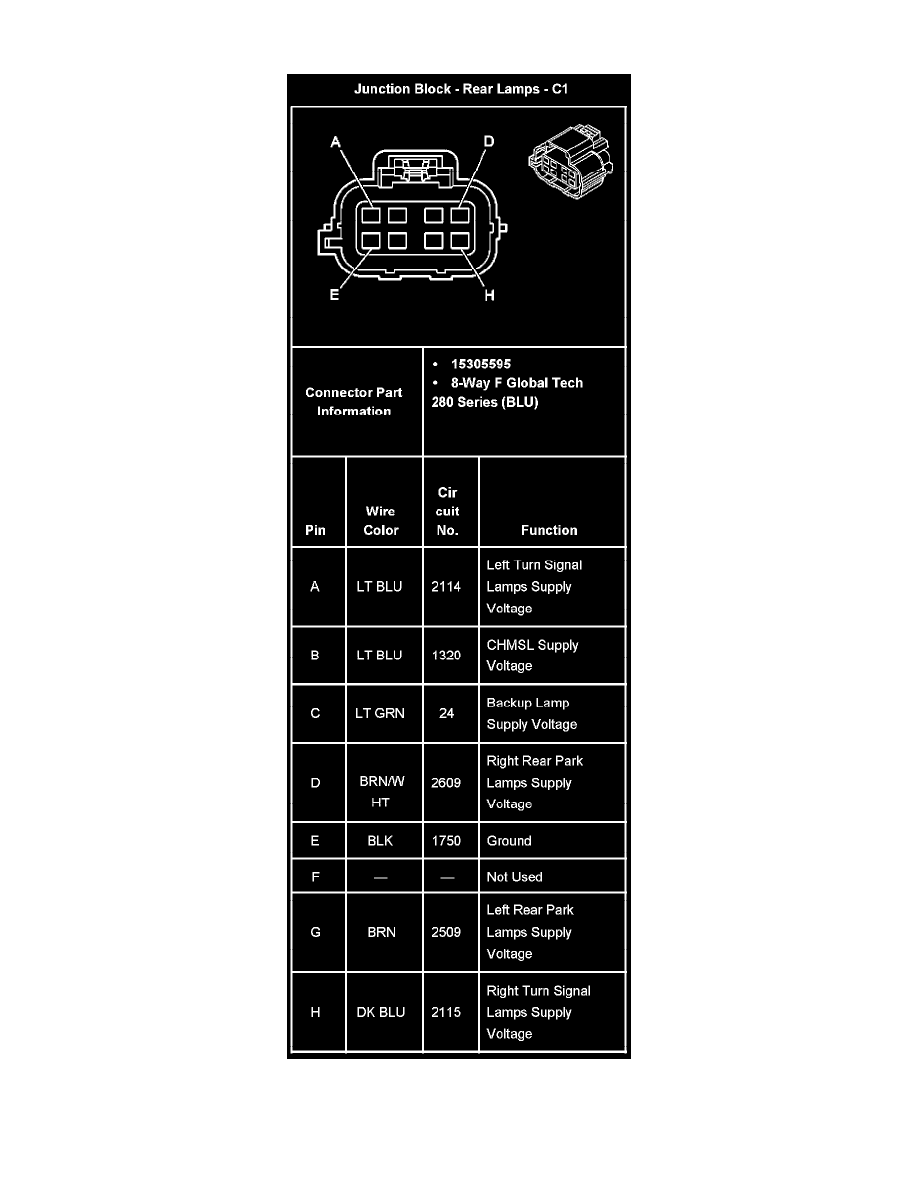

Junction Block - Rear Lamps - C1
