S15/T15 2WD Jimmy V6-262 4.3L (1991)
Accumulator HVAC: Service and Repair

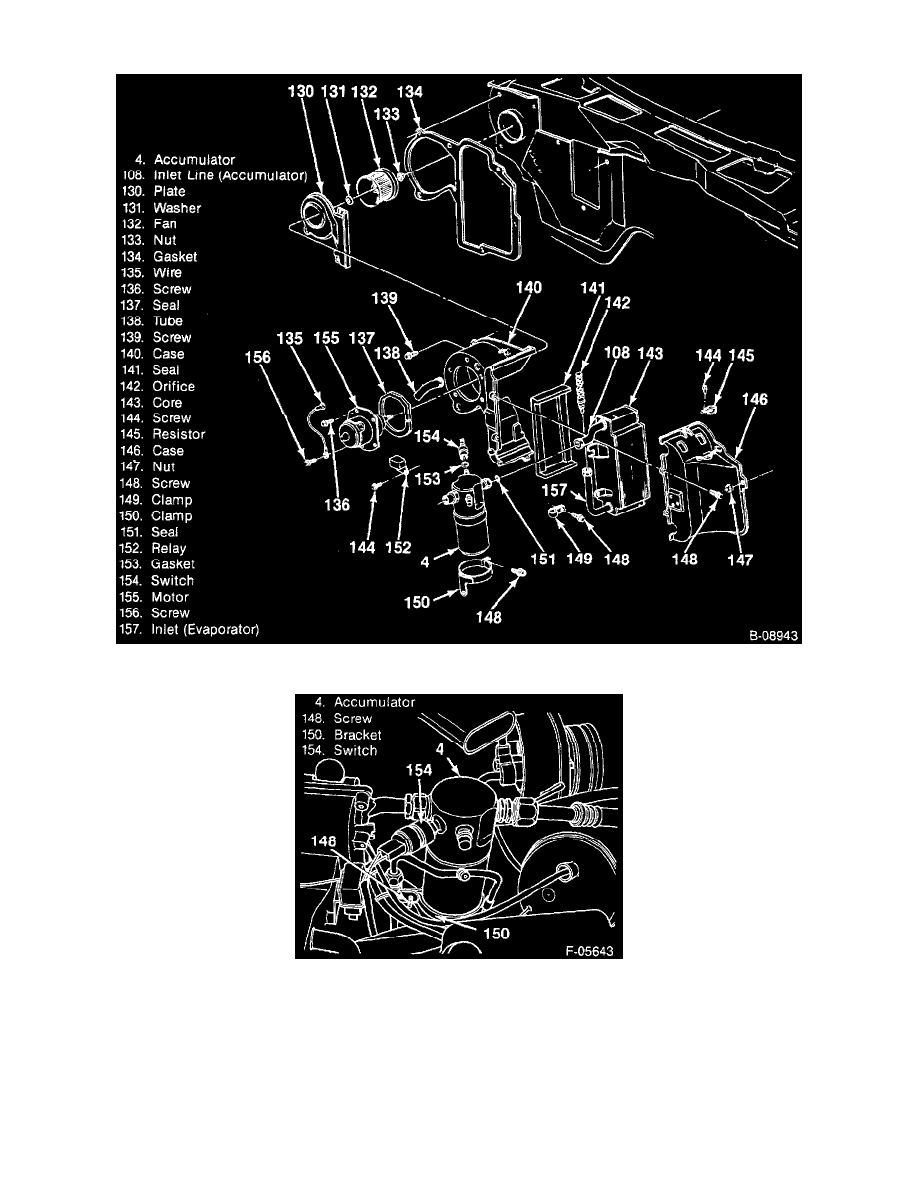

Evaporator and Blower Assembly Component View
Accumulator Replacement
The accumulator assembly has a service replacement kit which includes two seals (O-rings) for the inlet and outlet connections. The desiccant is NOT
serviced separately- it is pant of the sealed accumulator assembly. Refer to "Refrigerant Oil Distribution" for presence of refrigerant oil and service
conditions when removing the accumulator from the vehicle to measure the oil.
Replace the accumulator when:
1. A physical perforation produces a leak.
