Engine Control Module: Diagrams

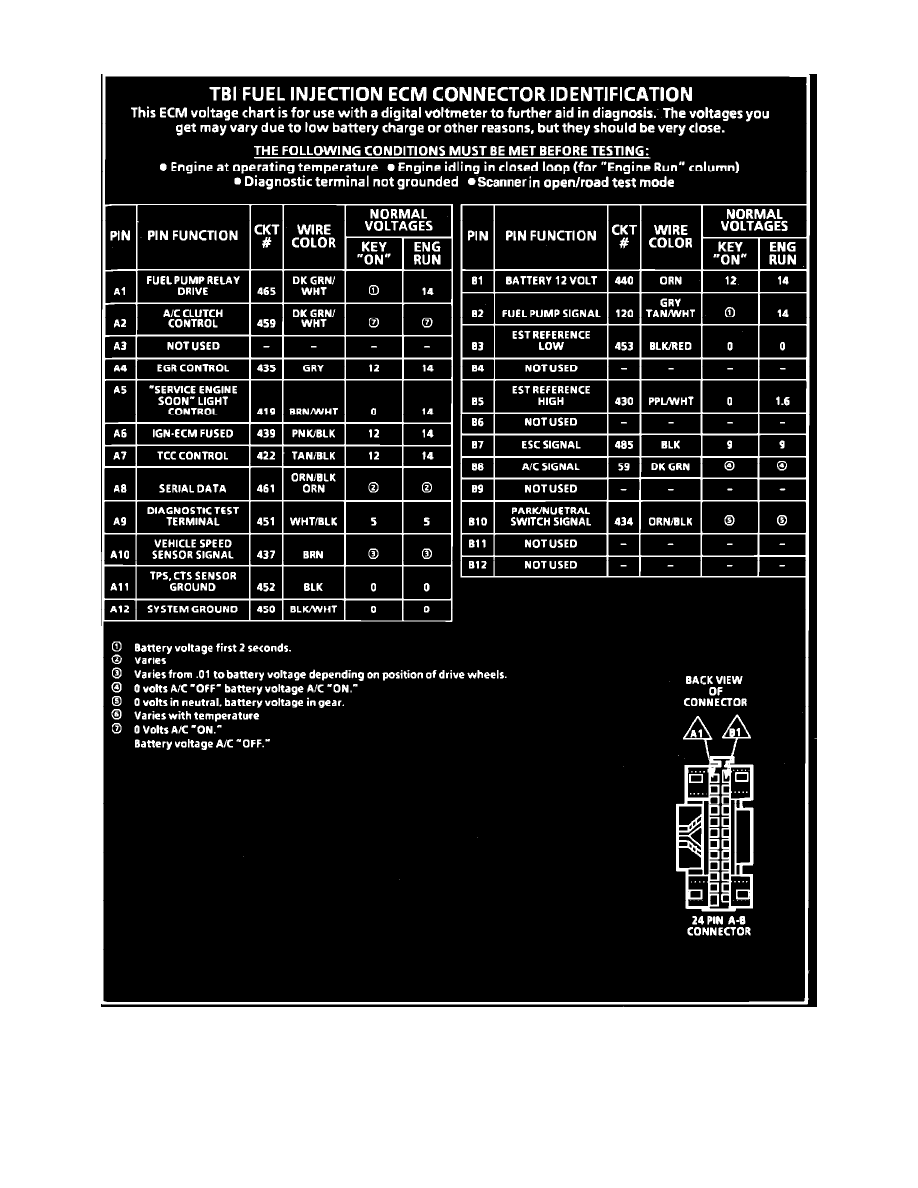

ECM Terminal Identification And Voltage Specification Part 1 Of 2

Powertrain Management
Computers and Control Systems
Engine Control Module / Component Information
Specifications
Page 3007
