S15/T15 2WD Jimmy V6-262 4.3L (1991)

Page 1
background image

Shift Light: Testing and Inspection

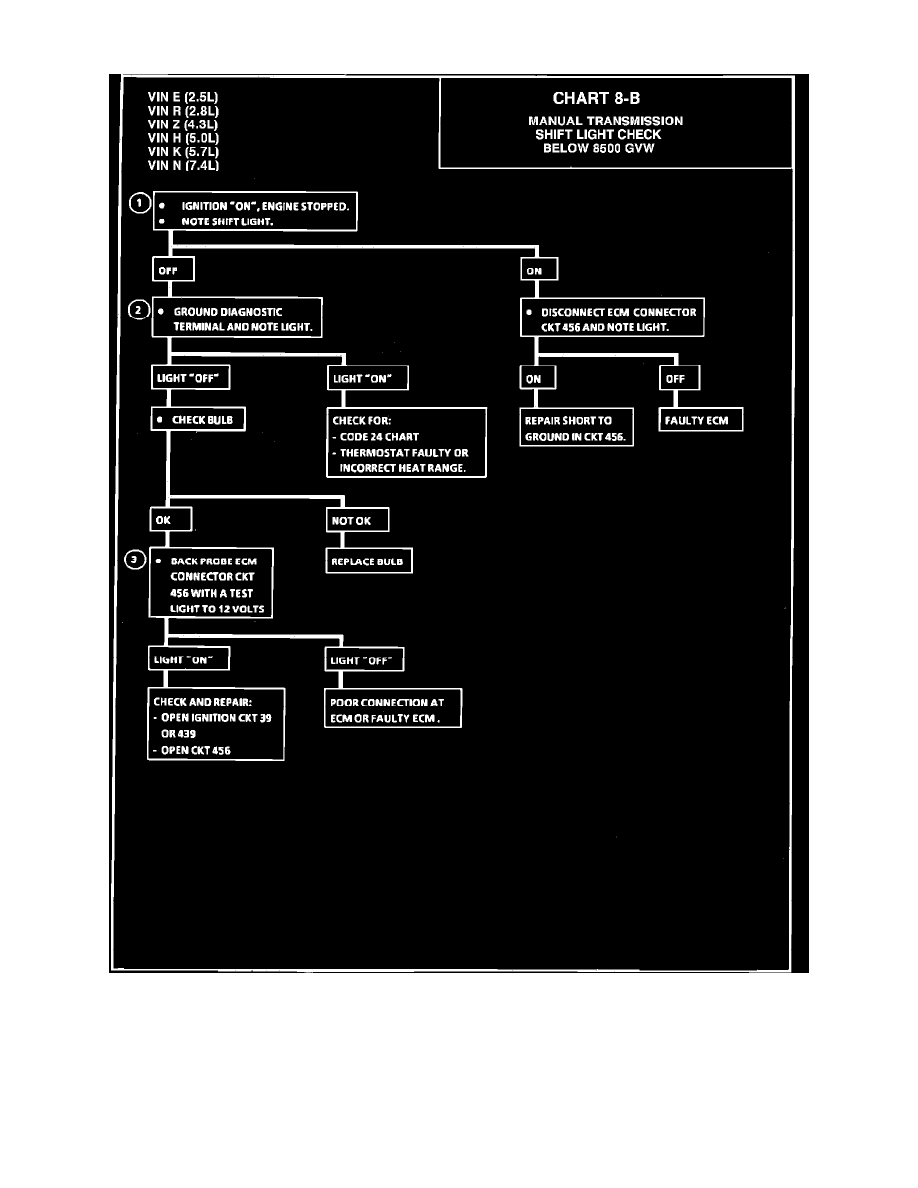

Chart C-8B - Manual Transmission Shift Light Check (Below 8500 GVW)
