S15/T15 2WD Jimmy V6-262 4.3L (1991)

Page 1
background image

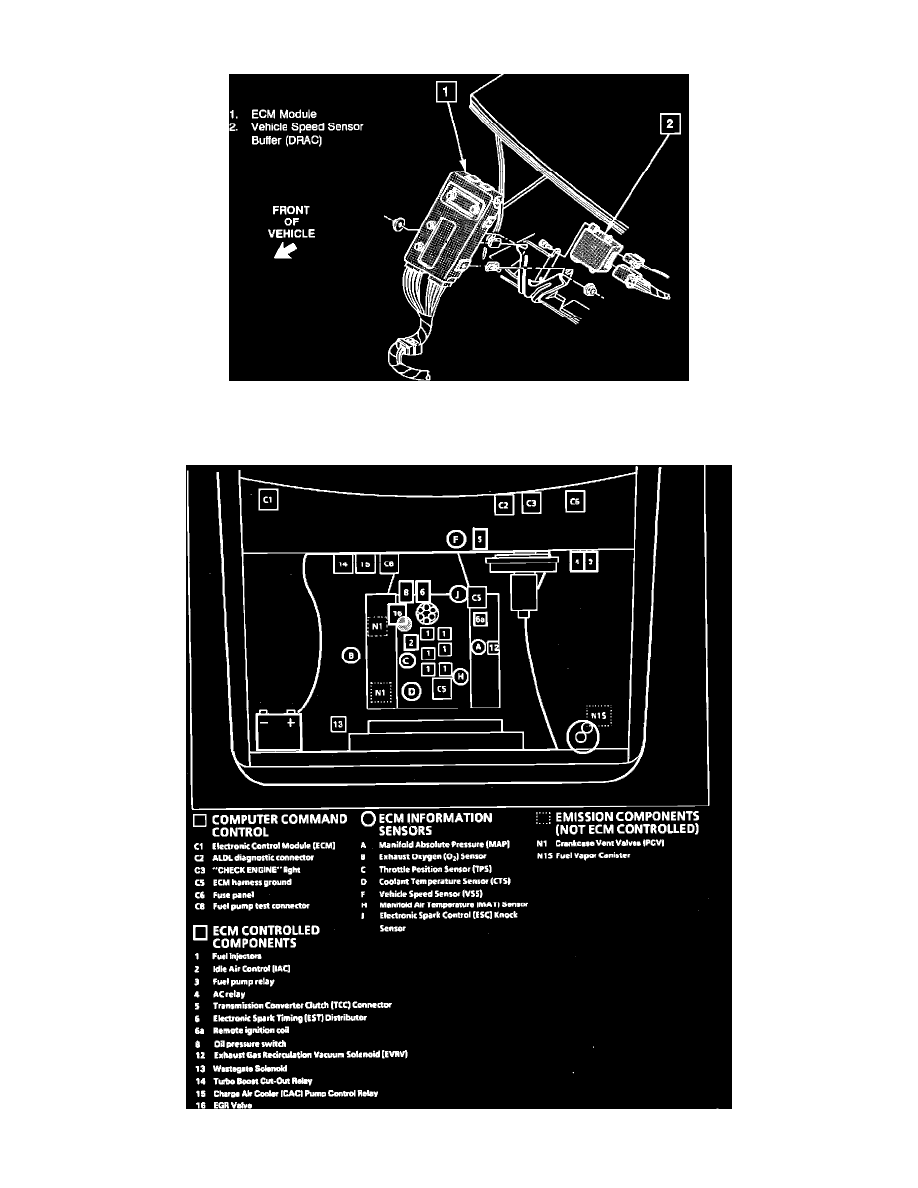

Engine Control Module: Locations

Electronic Control Module (ECM) & Vehicle Speed Sensor Buffer (DRAC)

 Behind RH Side Of I/P

Engine Compartment Components.
