S15/T15 2WD Jimmy V6-262 4.3L VIN W CPI (1993)
Roof Rack Frame: Technical Service Bulletins
Body - Roof Luggage Rack Installation Instructions
Bulletin Number: 93-10-79
Section: 10 Body
Number: 9
Corp. Ref. Number: 361003
Date: May 1993
Subject:
Informational - Roof Luggage Rack Installation Instructions
Models:
1993 S/T Utilities Equipped With RPO V54
Roof luggage rack installation instructions have been modified to state ONLY HAND TOOLS SHOULD BE USED during installation. The use of
power tools result in cross-threading of mounting fasteners and nicks and scratches of component parts. Only hand tools should be used to avoid loose
and/or damaged racks.
NOTICE Only hand tools should be used during luggage rack installation to avoid loose and/or damaged racks.
Film tape and "front" stickers should not be removed until after installation of the entire luggage rack assembly has been completed to avoid damaged or
incorrectly installed luggage racks.

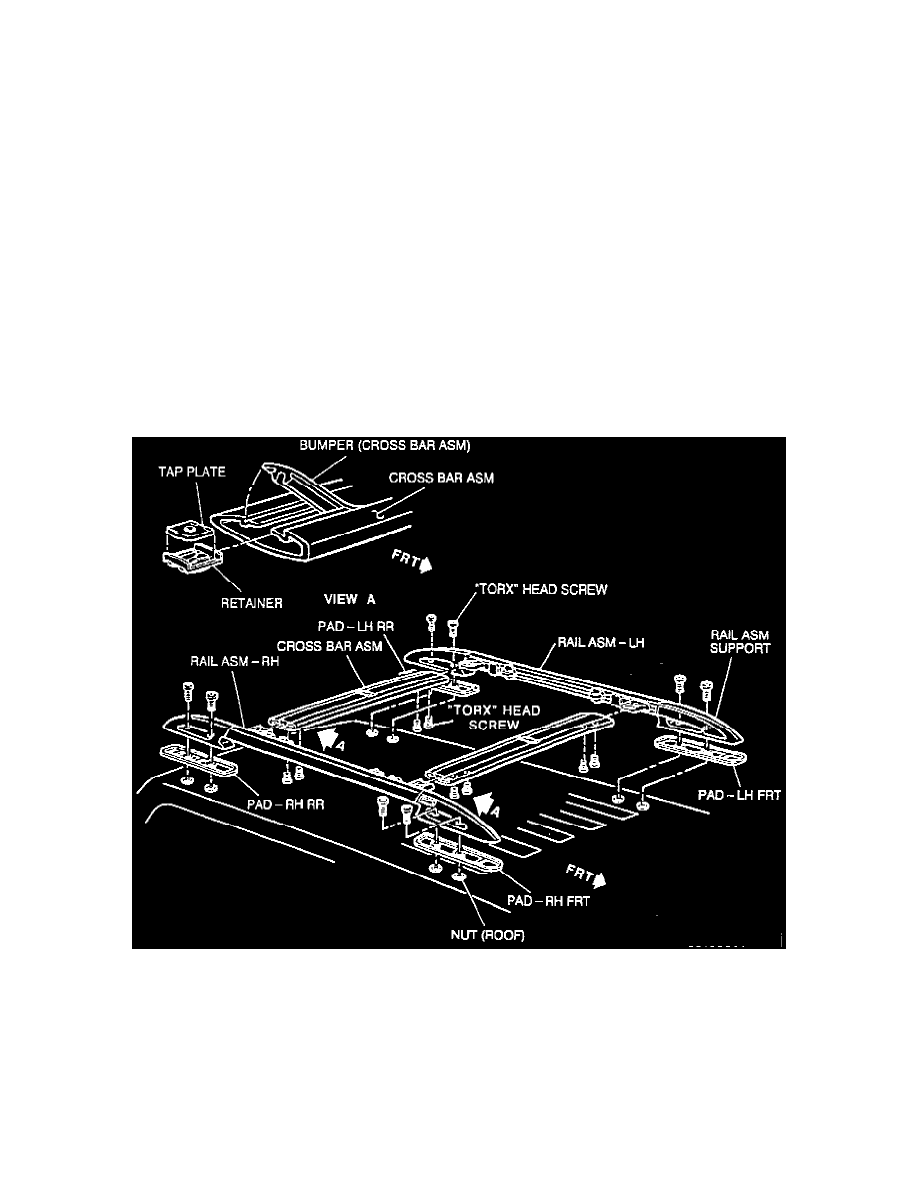

Figure 1
Refer to Figure 1:
1.
Install one side of the rail assembly and rail supports. The four (4) mounting screws MUST BE HAND STARTED. Tighten finger tight.
Care should be taken to ensure screws are started straight to eliminate possibility of cross-threading.
2.
Remove bumpers from cross rails to expose tap plates when attaching accessories. Insert two (2) tap plates and retainers (for accessory
attachments) into each end of the cross bar prior to assembly to rail.
