S15/T15 2WD Jimmy V6-262 4.3L VIN W CPI (1993)
Shift Linkage: Adjustments
4L60E Automatic Transmission

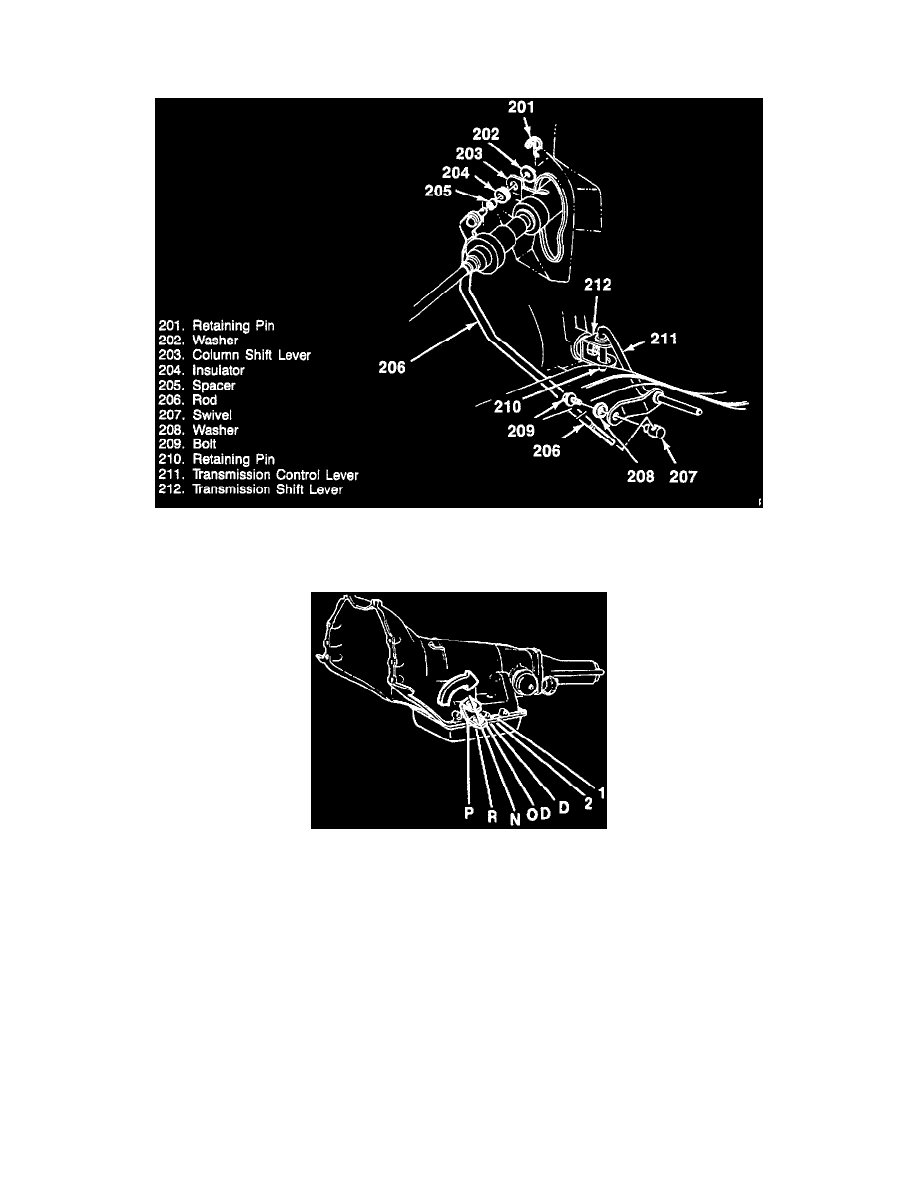

Shift Linkage (S/T)
Fig.1
Shift Positions
Fig.2
Remove or Disconnect
-
Apply the parking brake.
1. Loosen the bolt (209).
2. Put the column selector lever in the "N" (Neutral) position.
-
Put the lever in the neutral gate, do not use the indicator to find the neutral position.
3. Put the transmission in neutral.
-
Move the shift lever (A) (Fig.1) to the forward position, then back to the second detent) (Fig.2).
