S15/T15 2WD P/U V6-173 2.8L (1991)

  • Cruise Control
  • Sensors and Switches - Cruise Control
  • Brake Switch (Cruise Control)
  • Component Information
  • Locations
  • Brake Cruise Vacuum Release Valve

Page 1
background image

Brake Switch (Cruise Control): Locations
Brake Cruise Vacuum Release Valve

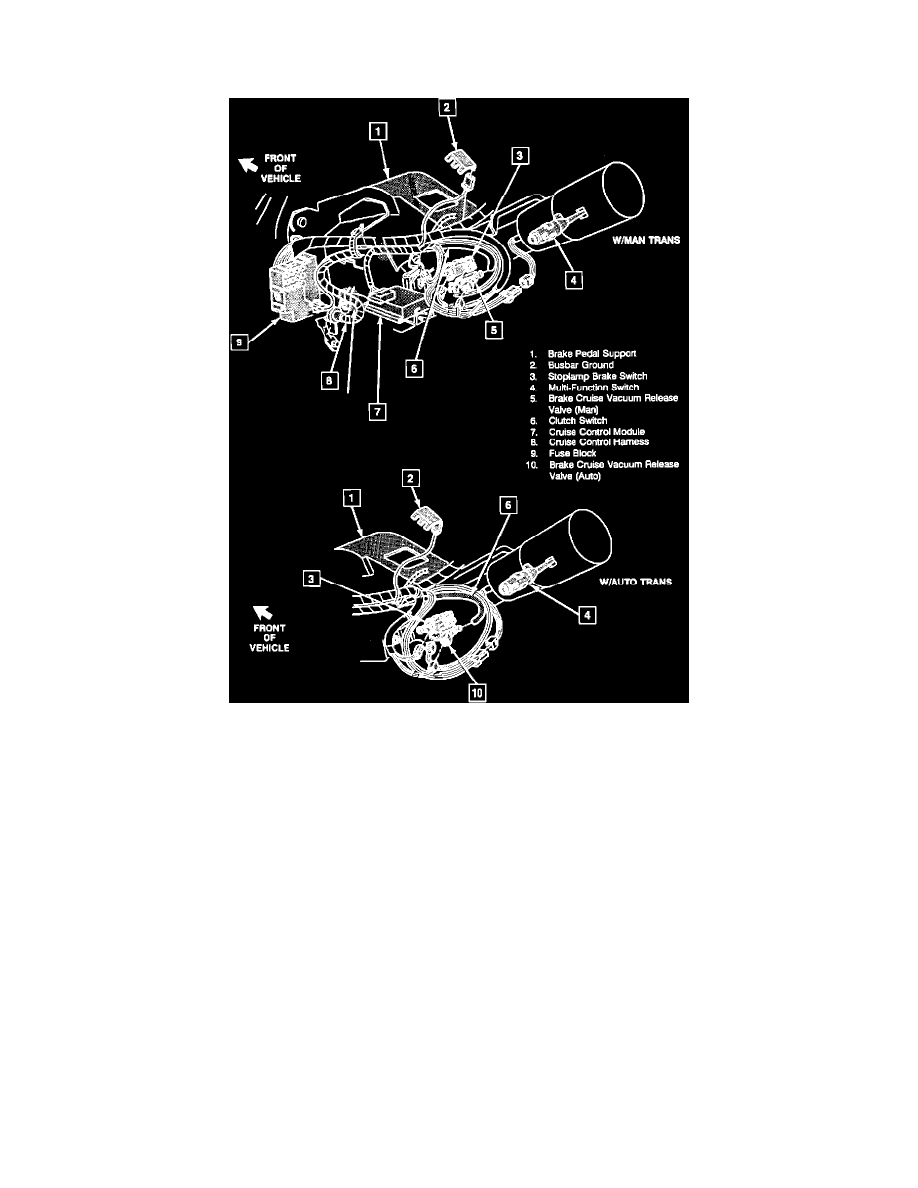

Cruise Control Components, Near Steering Column.

behind the left hand side of the I/P.
