S15/T15 Jimmy 2WD L4-119 1.9L VIN A 2-BBL (1983)
Powertrain Management
Computers and Control Systems
Sensors and Switches - Computers and Control Systems
Throttle Full Open Switch / Component Information
Testing and Inspection
Computer Command Control (C3) System
Page 1

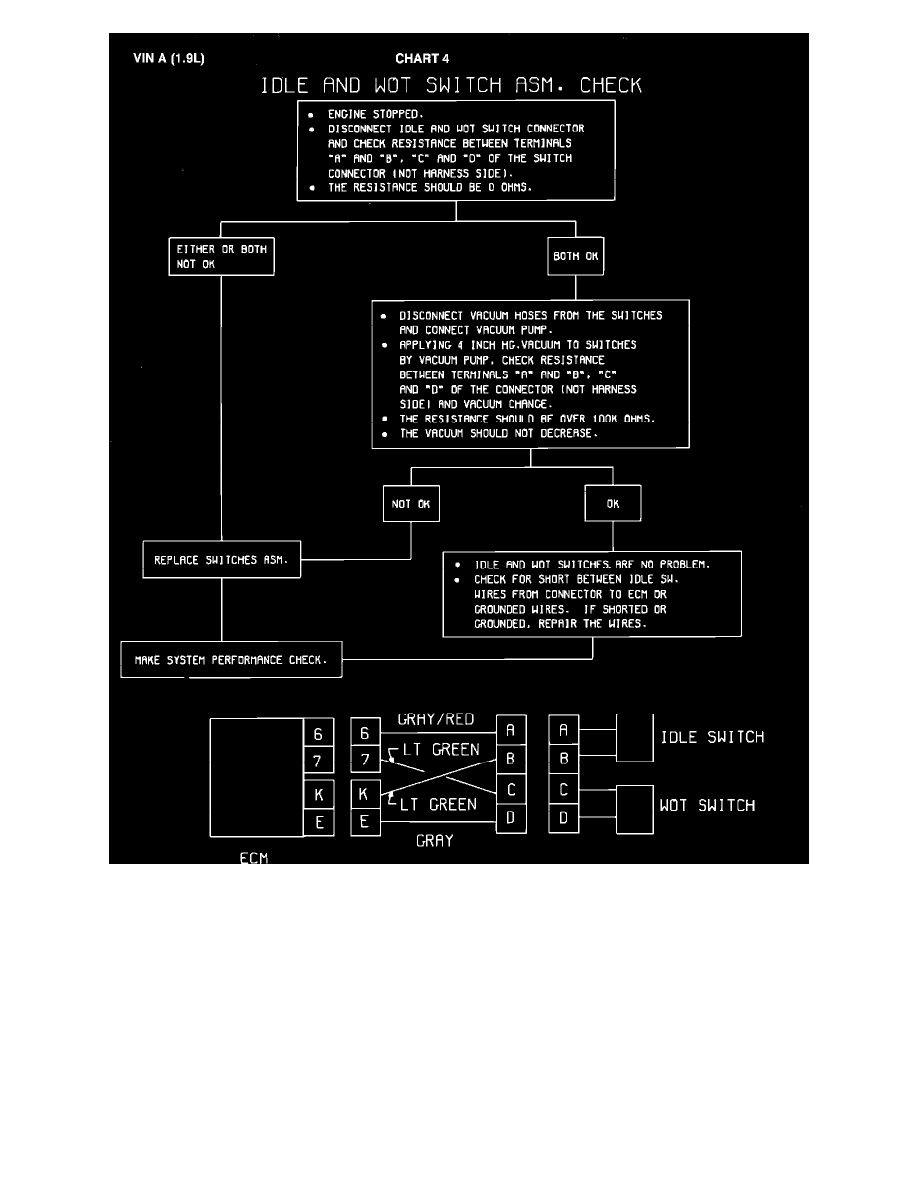

Chart 4 - Idle and WOT Switch Circuit Check
Powertrain Management
Computers and Control Systems
Sensors and Switches - Computers and Control Systems
Throttle Full Open Switch / Component Information
Testing and Inspection
Computer Command Control (C3) System
