S15/T15 Jimmy 2WD L4-119 1.9L VIN A 2-BBL (1983)
Powertrain Management
Fuel Delivery and Air Induction
Fuel Pump
Fuel Pressure
System Information
Specifications
Page 1

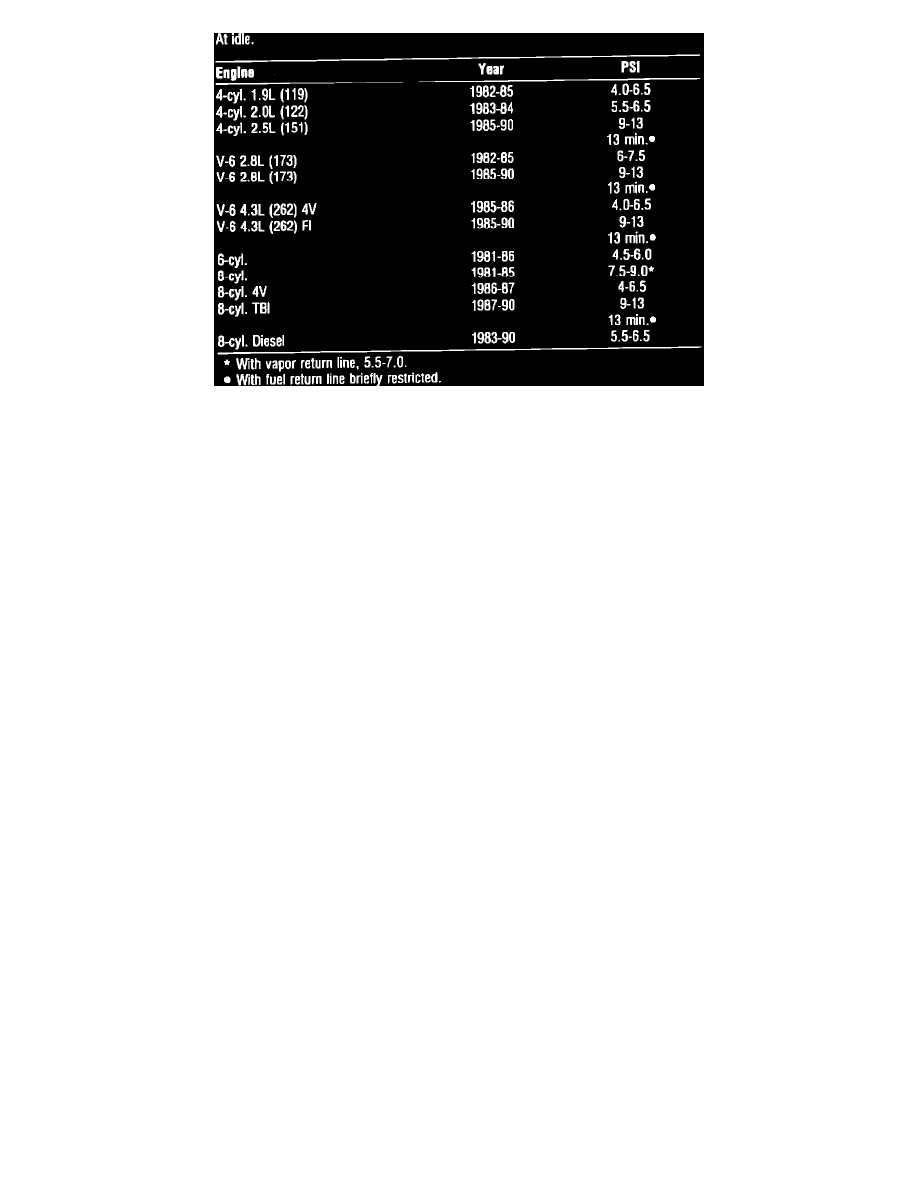

FUEL SYSTEM PRESSURE
Powertrain Management
Fuel Delivery and Air Induction
Fuel Pump
Fuel Pressure
System Information
Specifications
