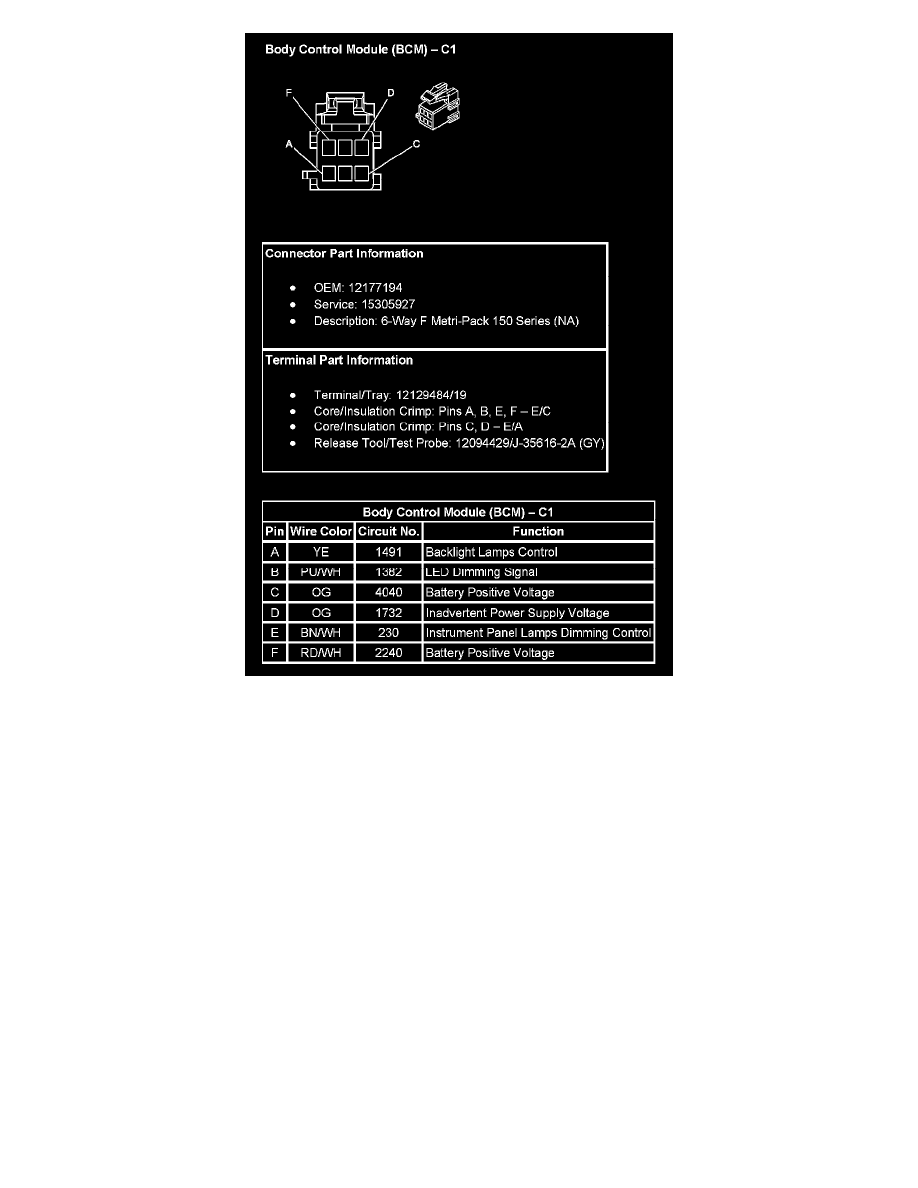

Body Control Module (BCM) - C1

Powertrain Management
Computers and Control Systems
Relays and Modules - Computers and Control Systems
Body Control Module
Component Information
Diagrams
Body Control Module (BCM) - C1
