Savana 3/4 Ton Van V8-305 5.0L VIN M SFI (2001)
Dome Lamp Bulb: Service and Repair

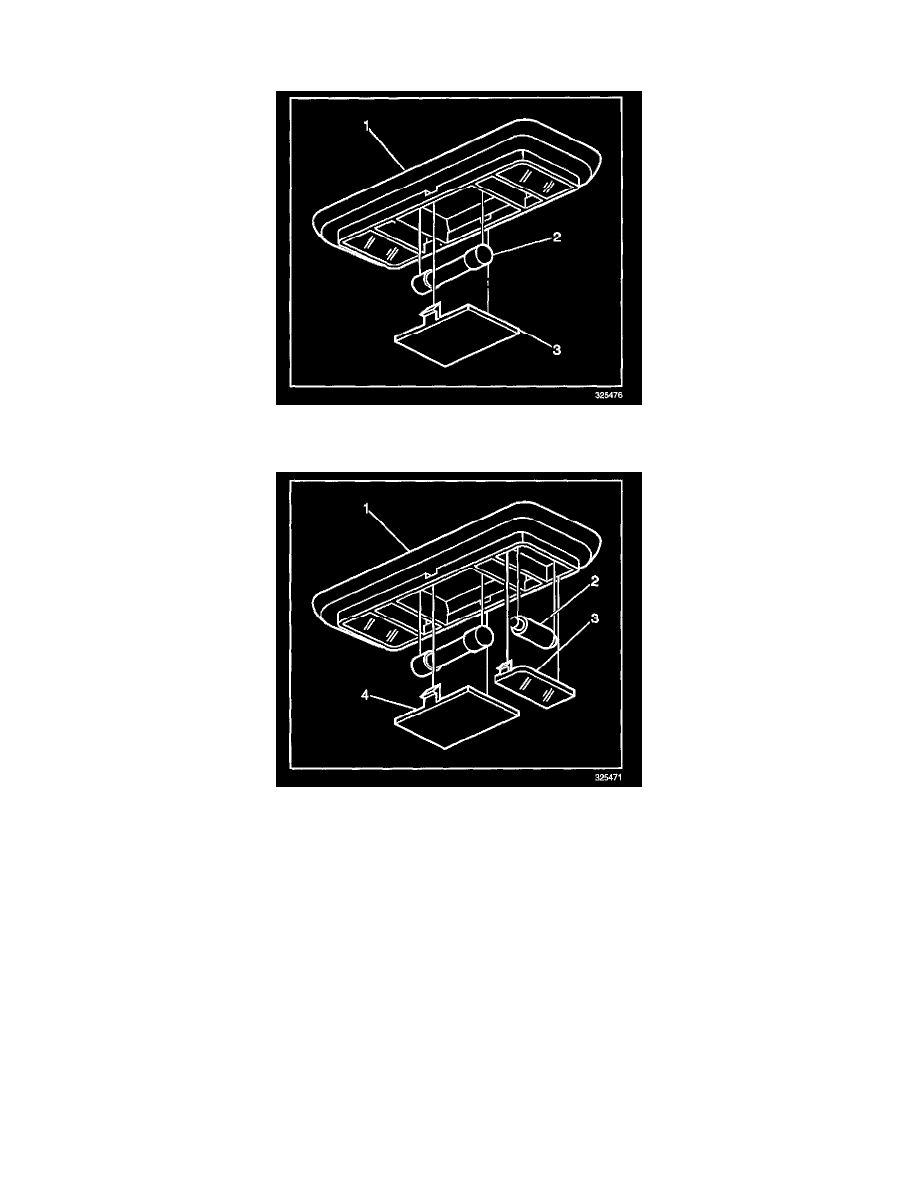

REMOVAL PROCEDURE
1. Gently pry on the dome lamp lens (3) with a suitable flat-bladed tool in order to disengage the retaining tabs from the dome lamp housing.
2. Remove the bulb (2) from the socket.
3. Gently pry on the map lamp lens with a suitable flat-bladed tool in order to disengage the retaining tabs from the dome lamp housing.
4. Remove the map lamp lens (3) from the dome lamp housing.
5. Remove the bulb (2) from the socket.
INSTALLATION PROCEDURE
