GMC Workshop Service and Repair Manuals > Savana 3500 V8-6.6L DSL Turbo VIN 2 (2006) > Powertrain Management | Computers and Control Systems | Electronic Throttle Actuator | Component Information | Diagrams

Engine Control Module > < Diagram Information and Instructions|Page 6418

Page 1

background image

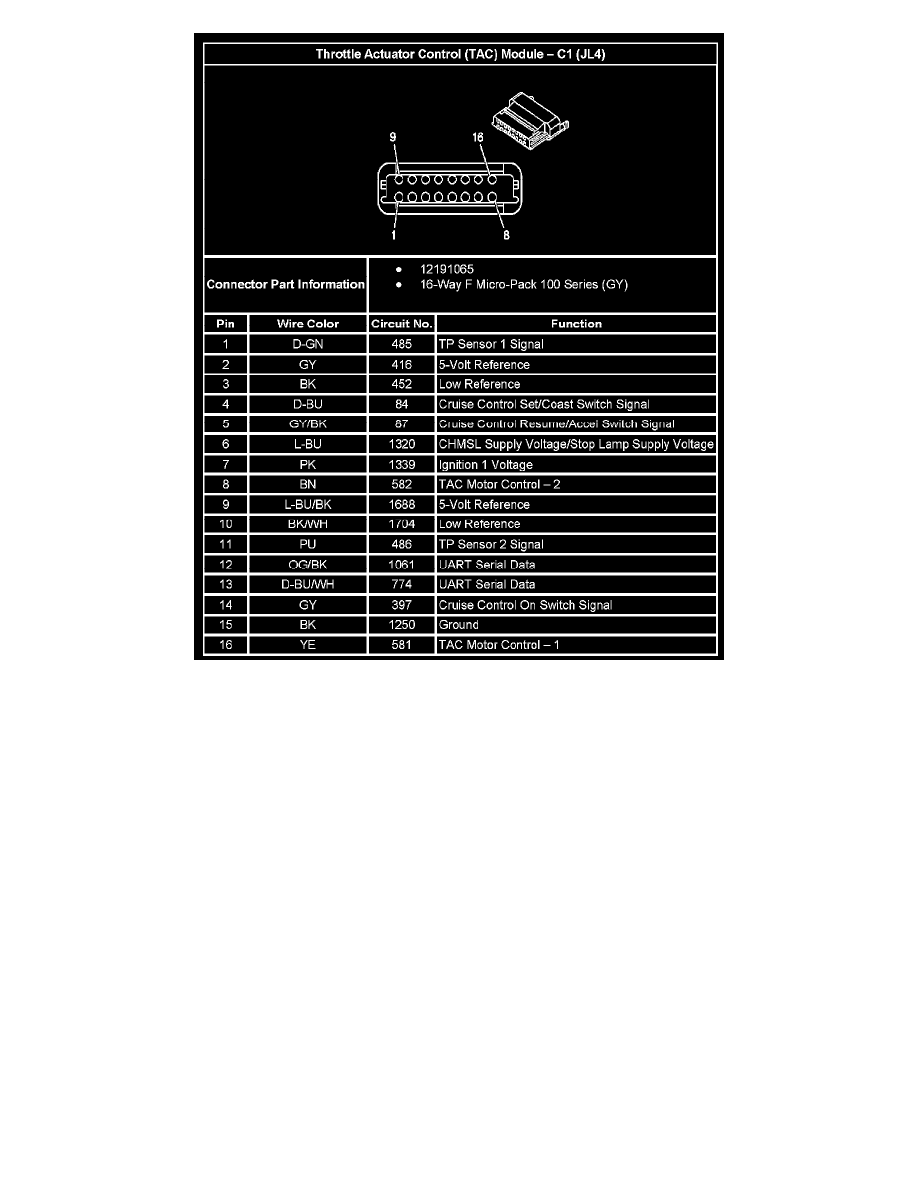

Throttle Actuator Control(TAC) Module - C1 (With RPO Code JL4)

Powertrain Management
Computers and Control Systems
Electronic Throttle Actuator
Component Information
Diagrams

Engine Control Module > < Diagram Information and Instructions|Page 6418
