Page 1

background image

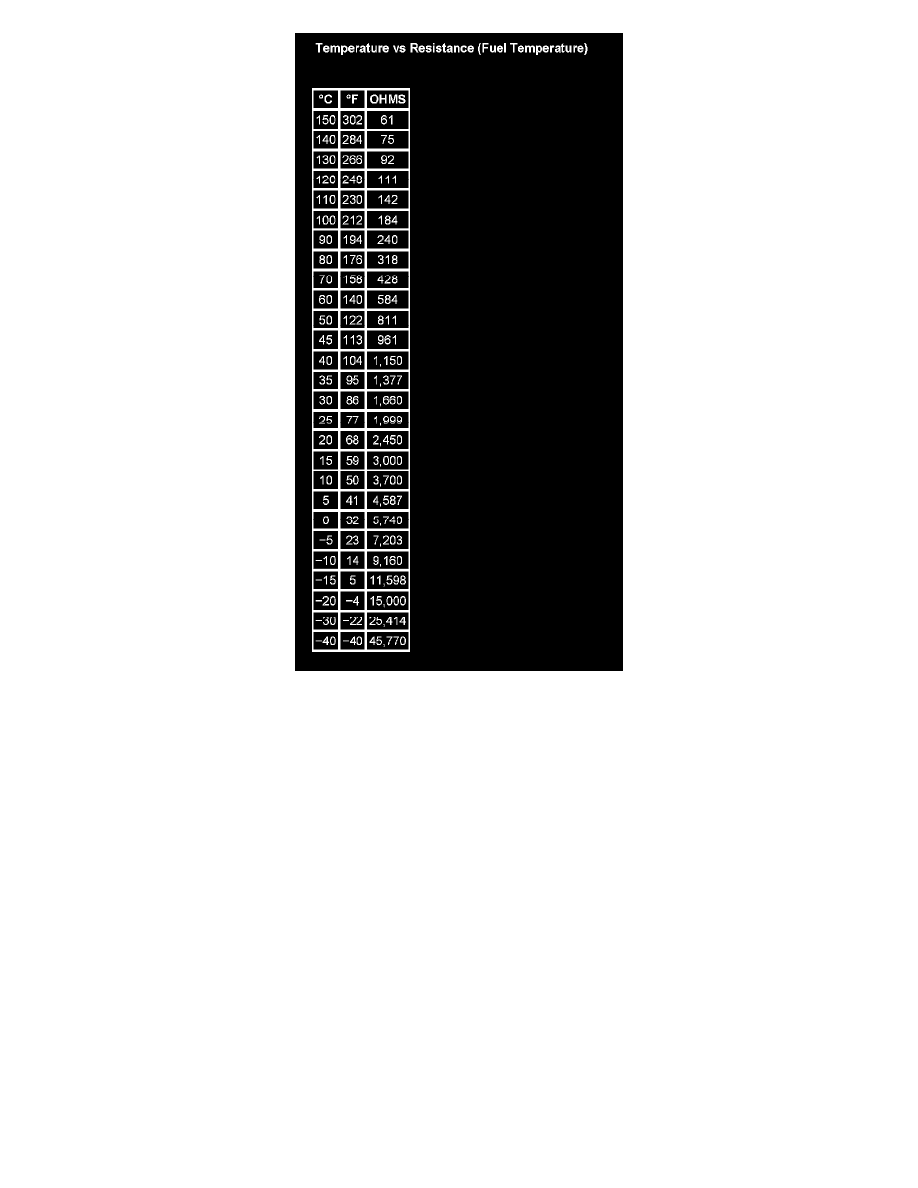

Temperature vs Resistance (Fuel Temperature)

Powertrain Management
Fuel Delivery and Air Induction
Fuel Temperature Sensor
Component Information
Specifications
