Sierra 1500 2WD V8-5.3L Hybrid (2004)

Page 1
background image

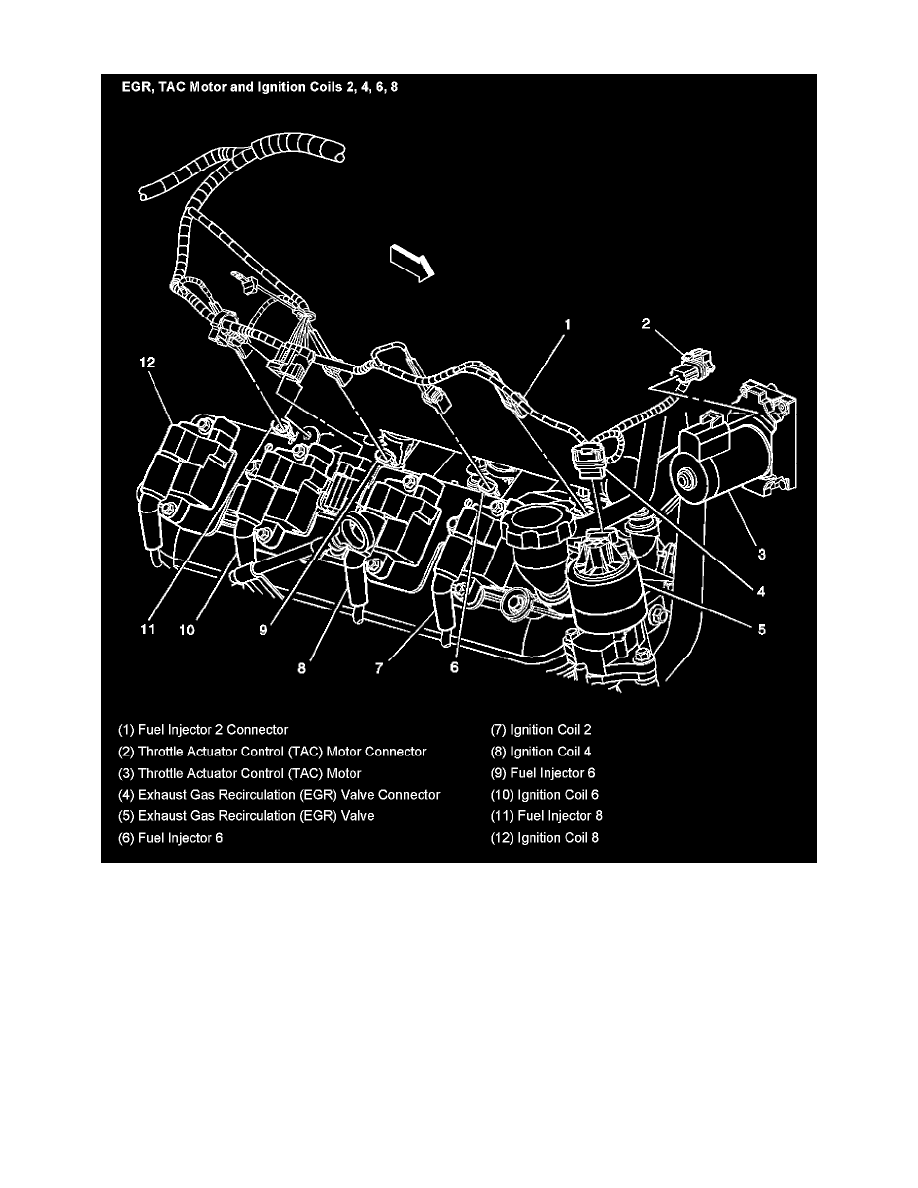

Electronic Throttle Actuator: Locations

EGR, TAC Motor And Ignition Coils 2, 4, 6, 8
