Page 9

background image

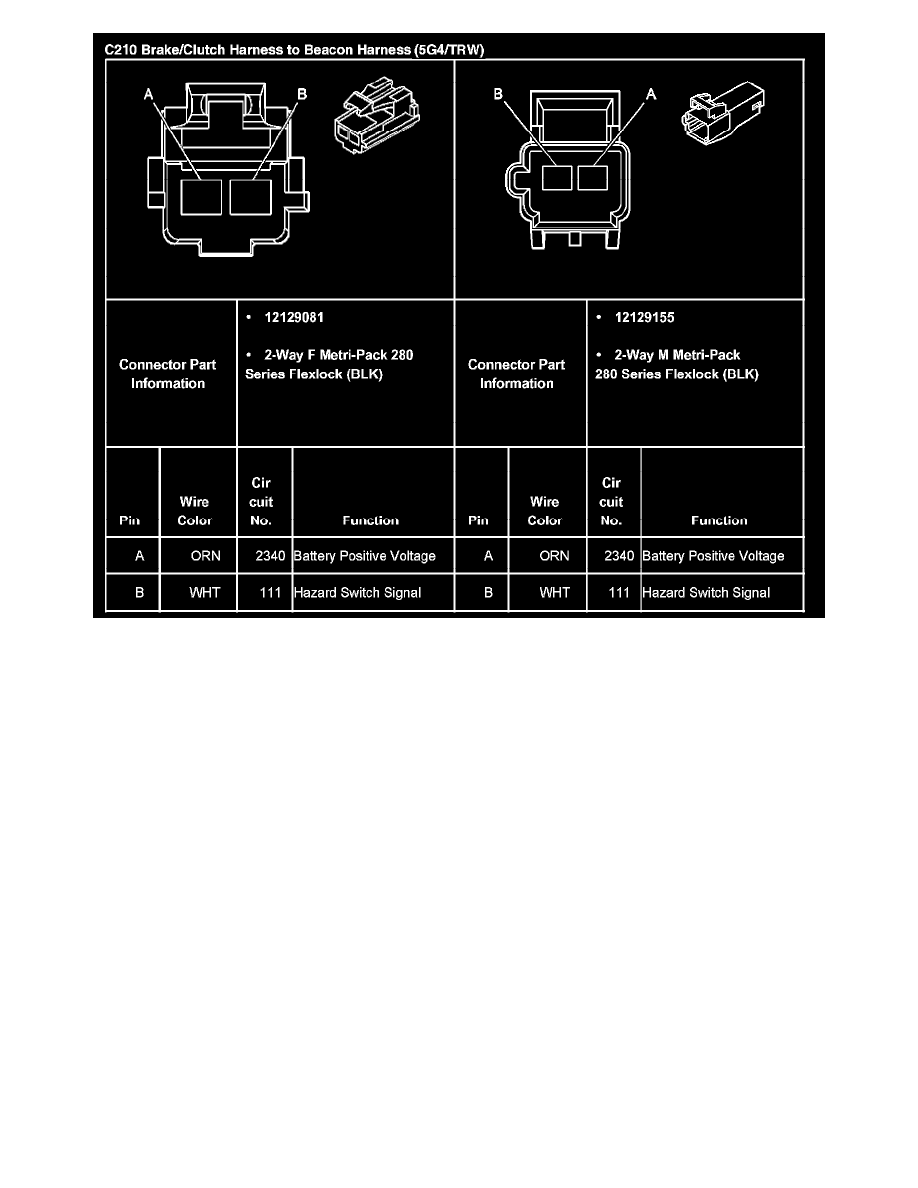

C210 Brake/Clutch Harness To Beacon Harness (With RPO Codes 5G4/TRW)

Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Diagrams / C100 - C198
Page 6805
