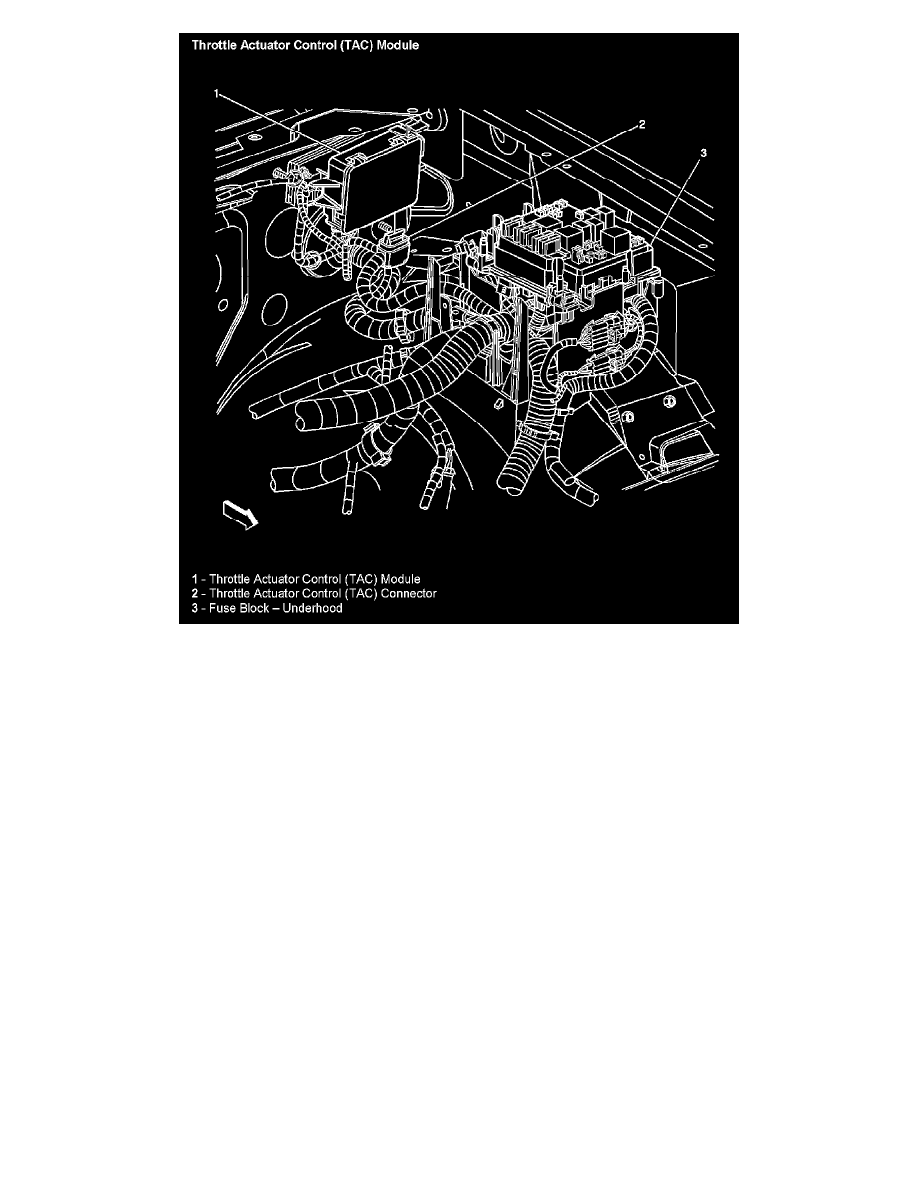

Throttle Actuator Control (TAC) Module

Powertrain Management
Computers and Control Systems
Electronic Throttle Actuator
Component Information
Locations
