GMC Workshop Service and Repair Manuals > Sierra 1500 2WD V8-5.3L VIN T (2005) > Starting and Charging | Power and Ground Distribution | Fuse Block | Component Information | Diagrams | Connector Views | Page 11889

Fuse Block|Diagrams|Connector Views|Page 11890 > < Fuse Block|Diagrams|Connector Views|Page 11888

Page 30

background image

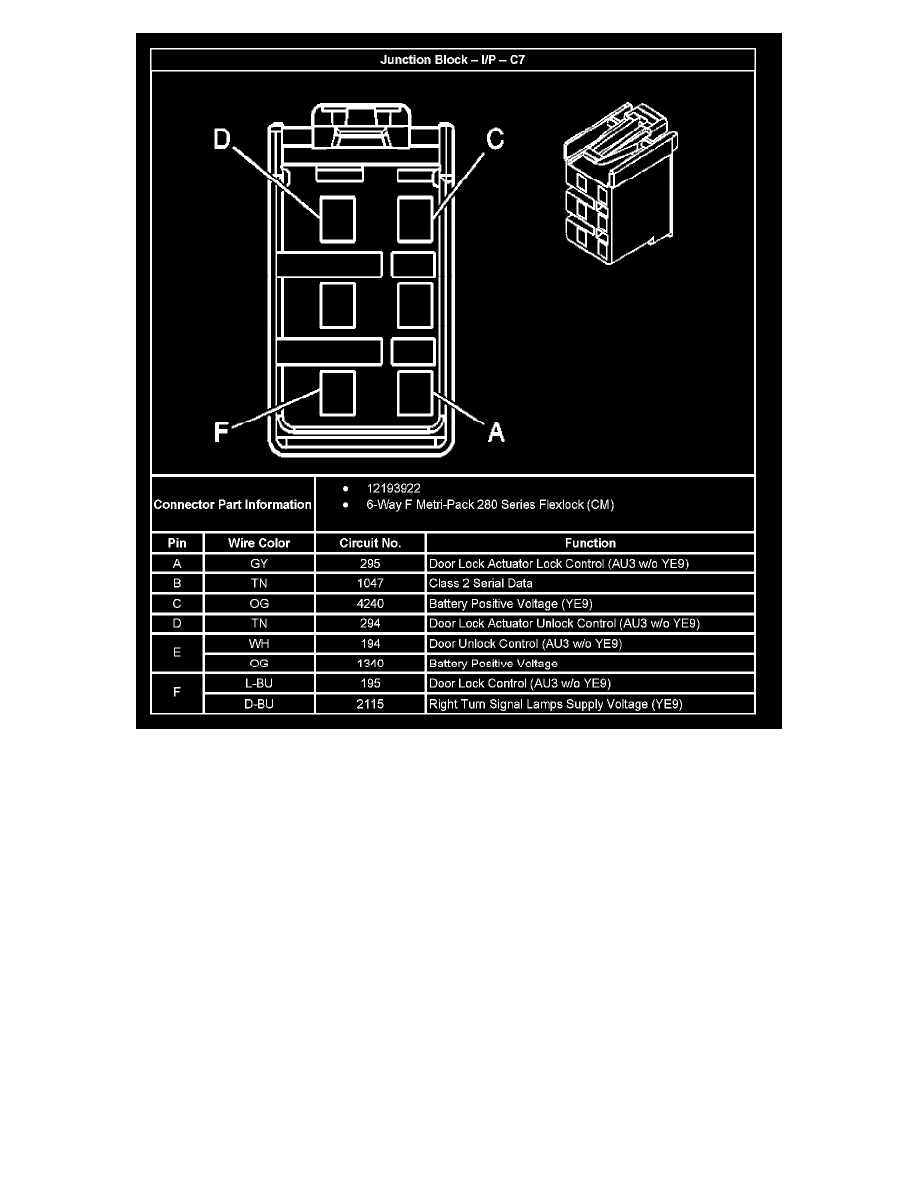

Junction Block - I/P - C7

Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Diagrams / Connector Views
Page 11889

Fuse Block|Diagrams|Connector Views|Page 11890 > < Fuse Block|Diagrams|Connector Views|Page 11888
