Page 33

background image

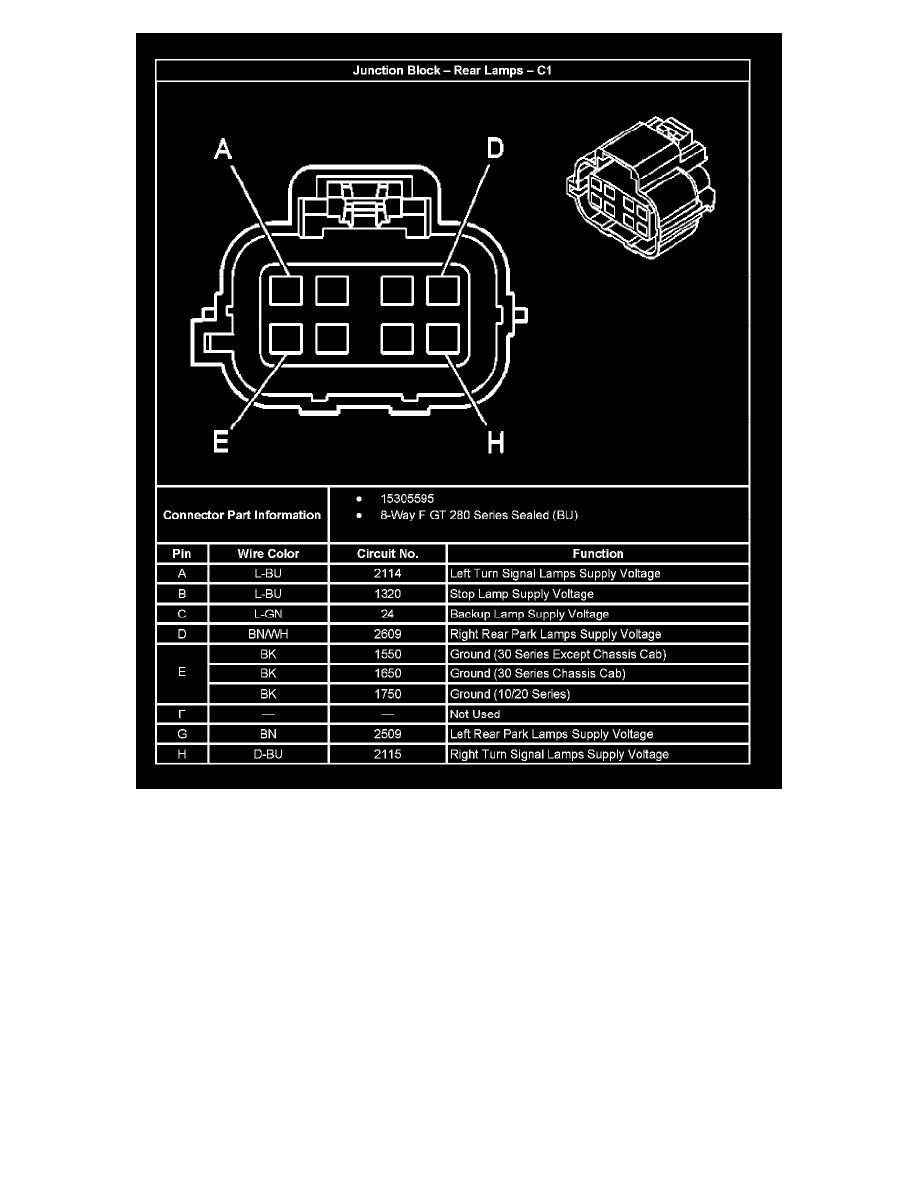

Junction Block - Rear Lamps - C1

Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Diagrams / Connector Views
Page 11892
