Sierra 1500 2WD V8-5.3L VIN Z Flex Fuel (2006)
![background image](/gmc/sierra_1500_2wd/v8-5.3l_vin_z_flex_fuel/Page-301001.png)

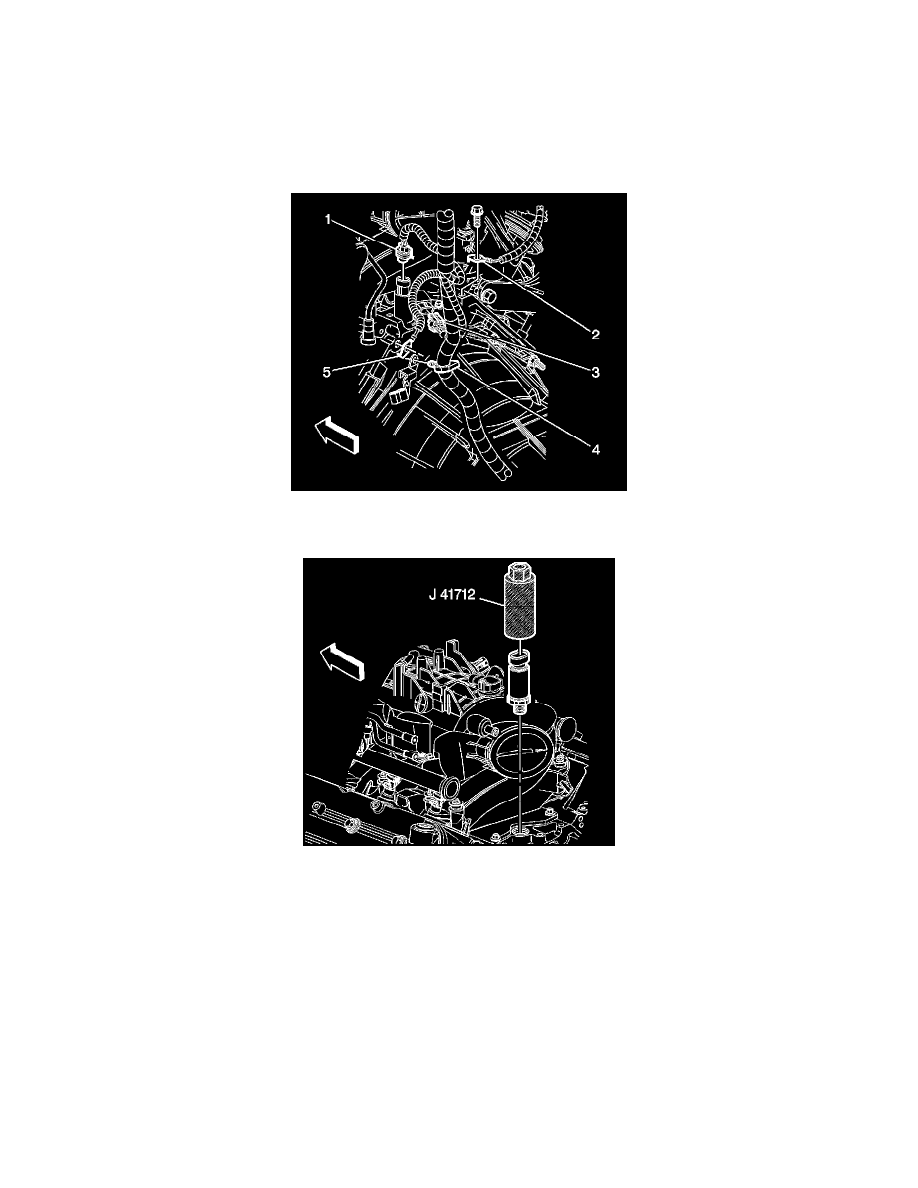

Oil Pressure Sensor: Service and Repair
Engine Oil Pressure Sensor and/or Switch Replacement
^
Tools Required
-
J 41712 Oil Pressure Switch Socket
Removal Procedure
1. If necessary, remove the engine sight shield.
2. Disconnect the oil pressure sensor electrical connector (1).
3. Using J 41712 or equivalent, remove the oil pressure sensor.
Installation Procedure
