Battery Cooling Fan Relay: Diagrams

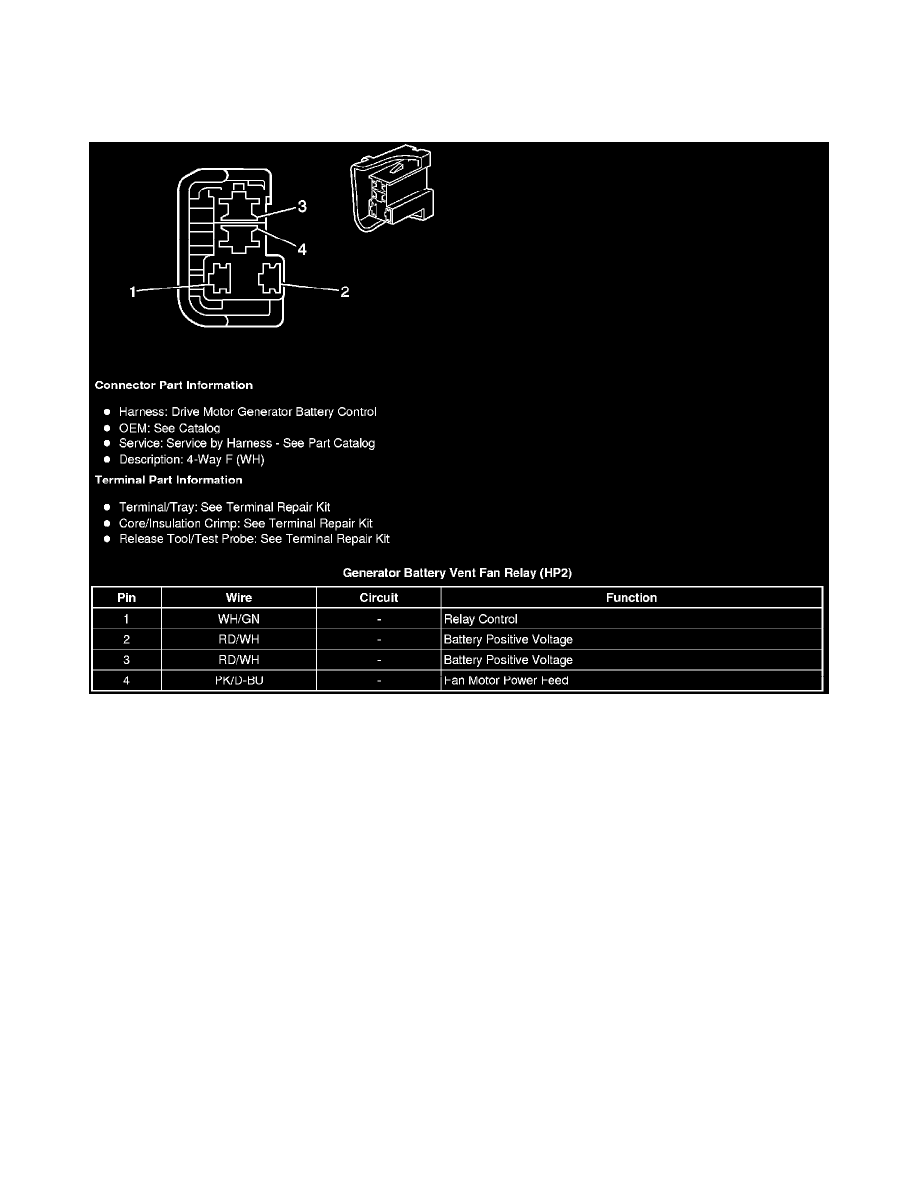

Component Connector End Views

Generator Battery Vent Fan Relay (HP2)
