Sierra 1500 2WD V8-6.0L Hybrid (2010)
Fuse: Locations
Auxiliary Fuse Block - Owners Manual
UNDERHOOD FUSE BLOCK
Hybrid Auxiliary Underhood Fuse Block

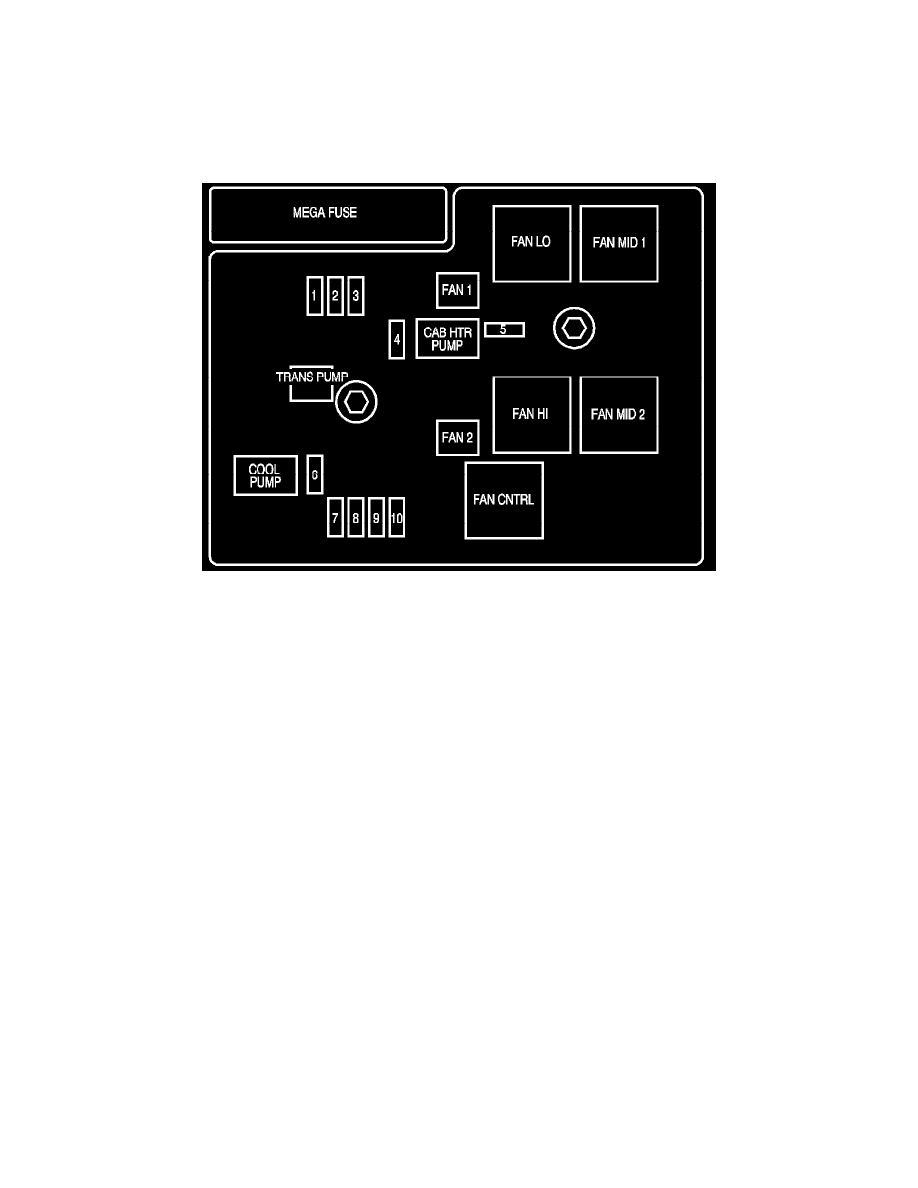

The hybrid underhood fuse block is located in the engine compartment near the front of the vehicle. Lift the cover for access to the fuse/relay block.
Fuses ............................................................................................................................................................................................................................ Usage
Fuse 1 .................................................................................................................................................................................................. ACPO (SUV Only)
Fuse 2 ............................................................................................................................................................................................................. BECM FAN
Fuse 3 ..................................................................................................................................................................................................................... ACCM
Fuse 4 ....................................................................................................................................................................................................... CAB HTR PMP
Fuse 5 ................................................................................................................................................................................................................... EMPTY
Fuse 6 .......................................................................................................................................................................................................... COOL PUMP
Fuse 7 .......................................................................................................................................................................................................................... EPS
Fuse 8 ............................................................................................................................................................... Drive Motor/Generator Control Module 1
Fuse 9 ............................................................................................................................................................... Drive Motor/Generator Control Module 2
Fuse 10 .................................................................................................................................................................................................................... BECM
J-Case .......................................................................................................................................................................................................................... Usage
FAN 1 .......................................................................................................................................................................................................... Cooling Fan 1
TRANS PUMP .......................................................................................................................................................... Auxiliary Transmission Fluid Pump
FAN 2 .......................................................................................................................................................................................................... Cooling Fan 2
CAB HTR PMP ..................................................................................................................................................................................... Cab Heater Pump
Relays .......................................................................................................................................................................................................................... Usage
FAN LOW ......................................................................................................................................................................... Cooling Fan Low Speed Relay
FAN MID 1 .......................................................................................................................................................................................... Cooling Fan Mid 1
FAN HI ............................................................................................................................................................................. Cooling Fan High Speed Relay
FAN MID 2 .......................................................................................................................................................................................... Cooling Fan Mid 2
FAN CNTRL ..................................................................................................................................................................................... Cooling Fan Control
