Page 3

background image

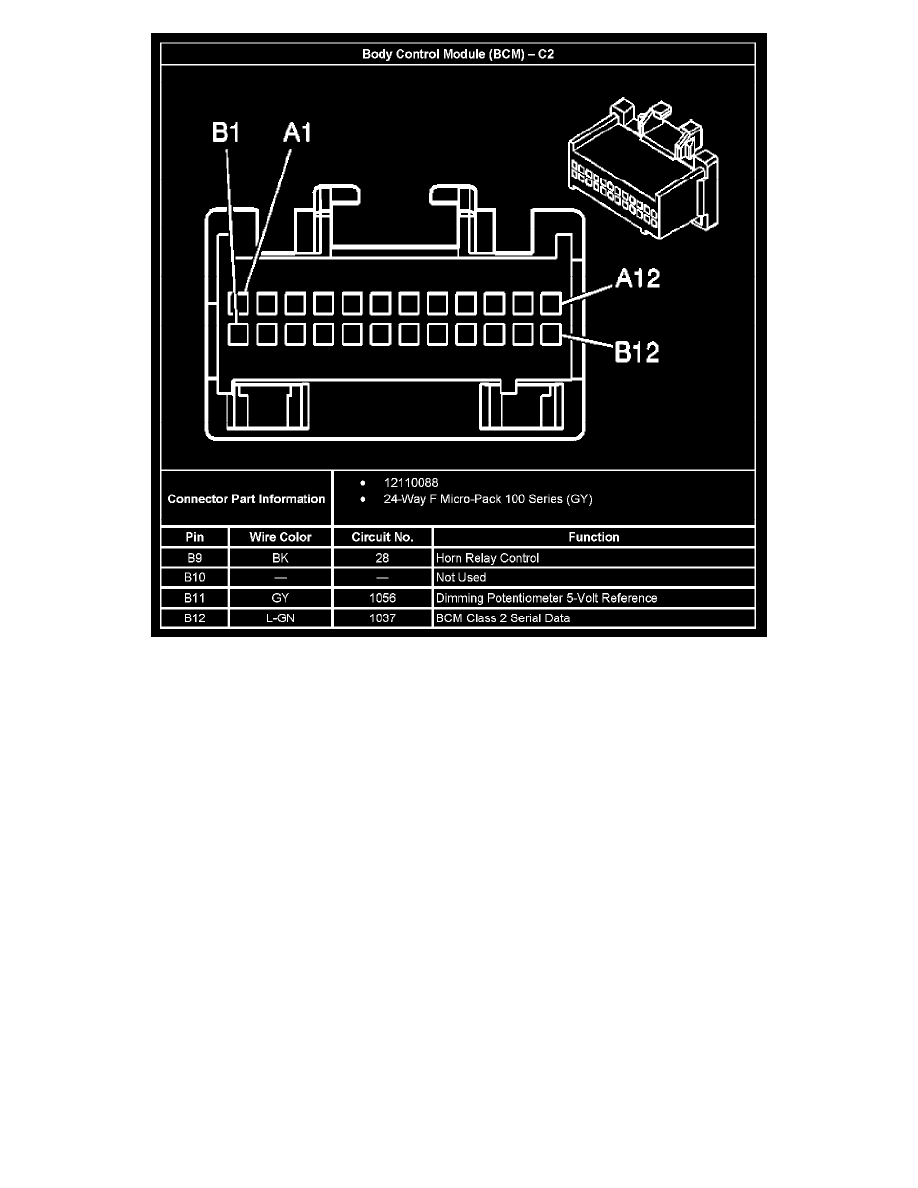

Body Control Module (BCM) - C2 Part 2

Body and Frame
Body Control Systems / Body Control Module / Component Information
Diagrams / Diagram Information and Instructions
Page 17218
