Sierra 1500 4WD V8-5.3L VIN B (2005)

  • Steering and Suspension
  • Relays and Modules - Steering and Suspension
  • Relays and Modules - Steering
  • Steering Control Module
  • Component Information
  • Diagrams

Page 1
background image

Steering Control Module: Diagrams

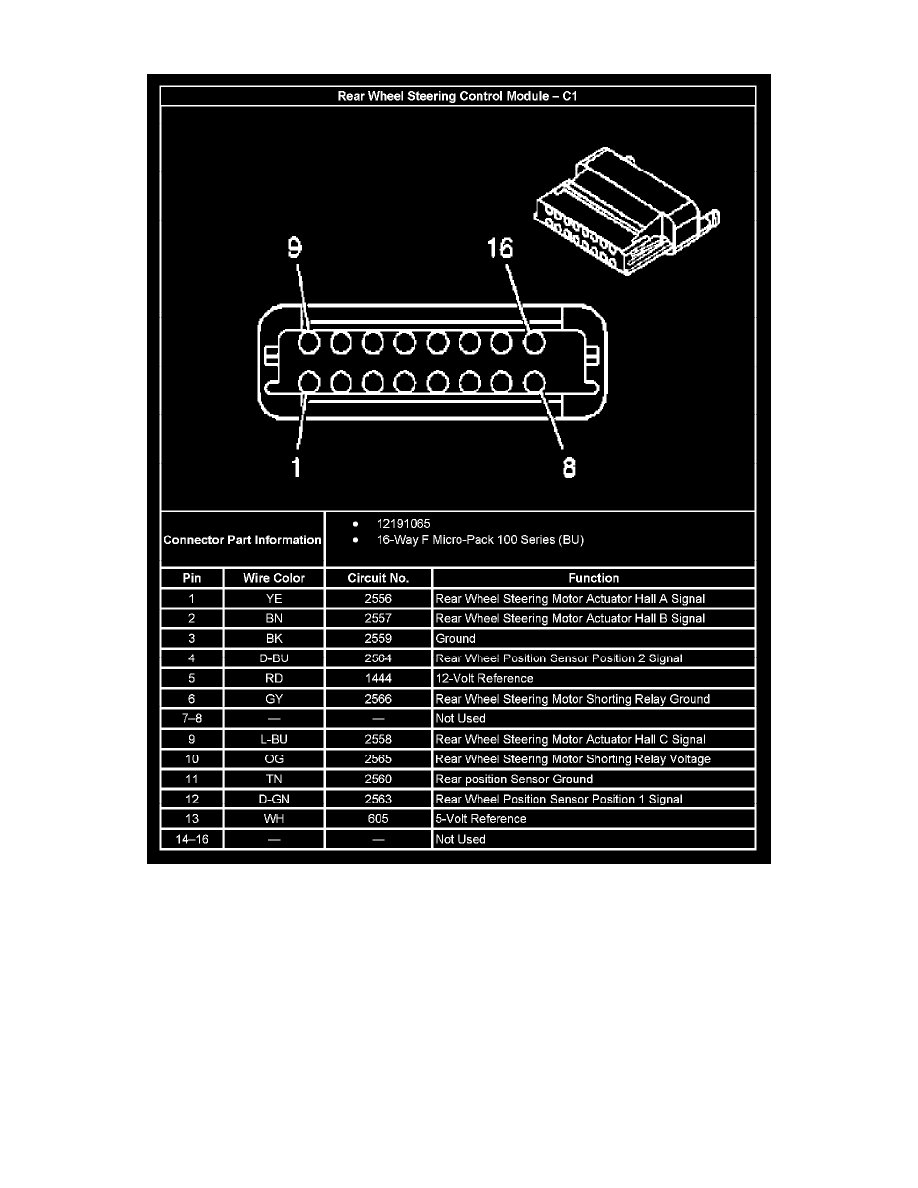

Rear Wheel Steering Control Module - C1

  • Steering and Suspension
  • Relays and Modules - Steering and Suspension
  • Relays and Modules - Steering
  • Steering Control Module
  • Component Information
  • Diagrams
