Sierra 1500 4WD V8-5.3L VIN Z Flex Fuel (2005)

Page 1
background image

Electronic Throttle Control Module: Locations

THROTTLE ACTUATOR CONTROL MODULE

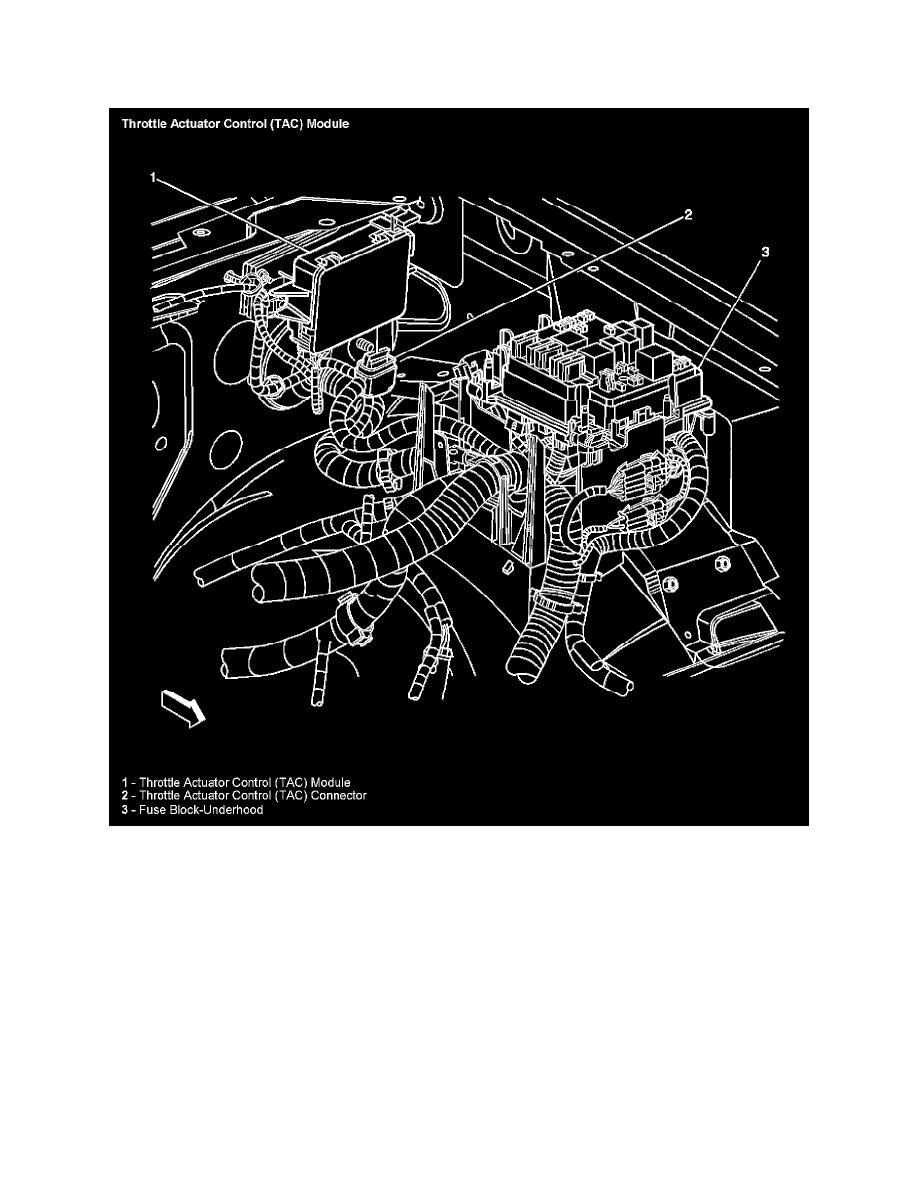

Throttle Actuator Control (TAC) Module

The Throttle Actuator Control Module (TAC) is located in the left rear of the engine compartment.
