Sierra 1500 4WD V8-5.3L VIN Z Flex Fuel (2005)
Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Diagrams / Connector Views
Page 12325
Page 16

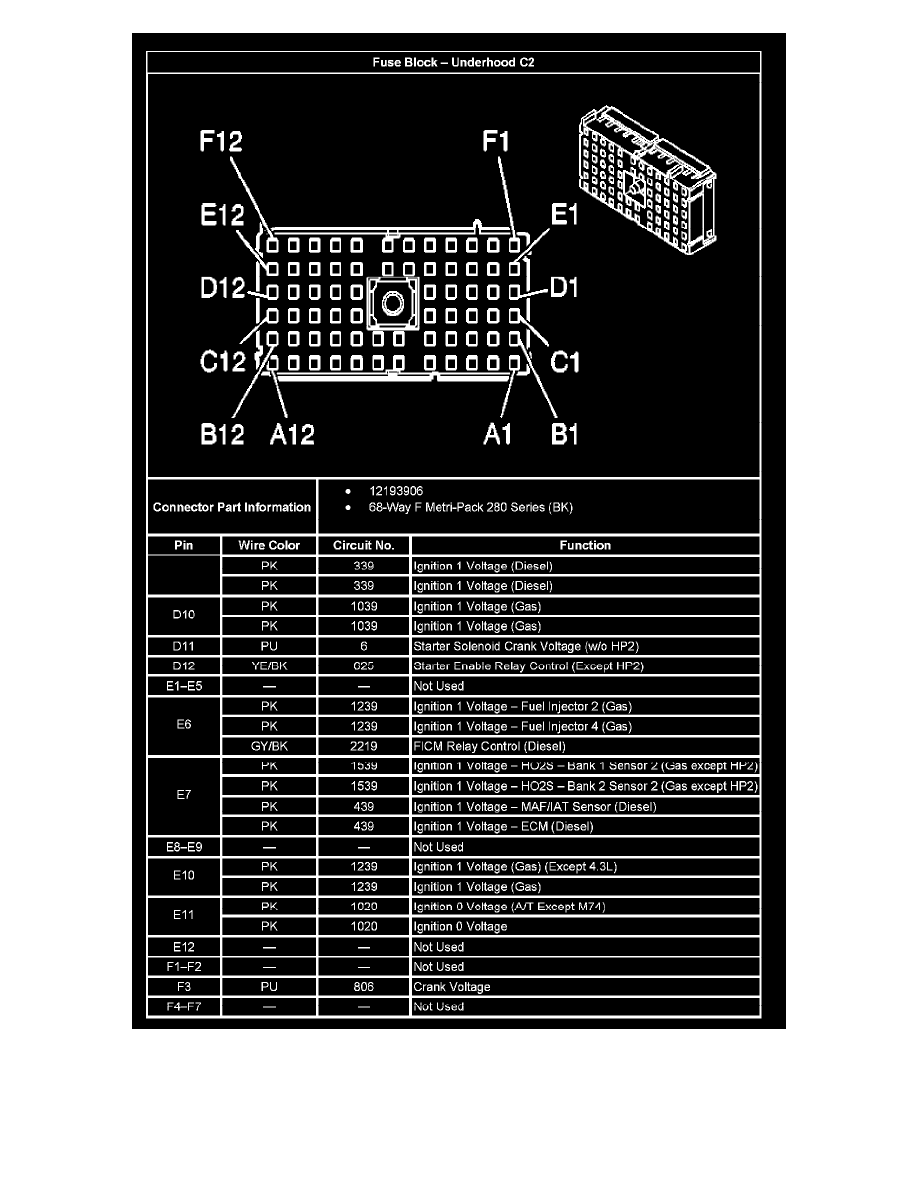

Fuse Block - Underhood C2 Part 3
Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Diagrams / Connector Views
Page 12325
