Page 1

background image

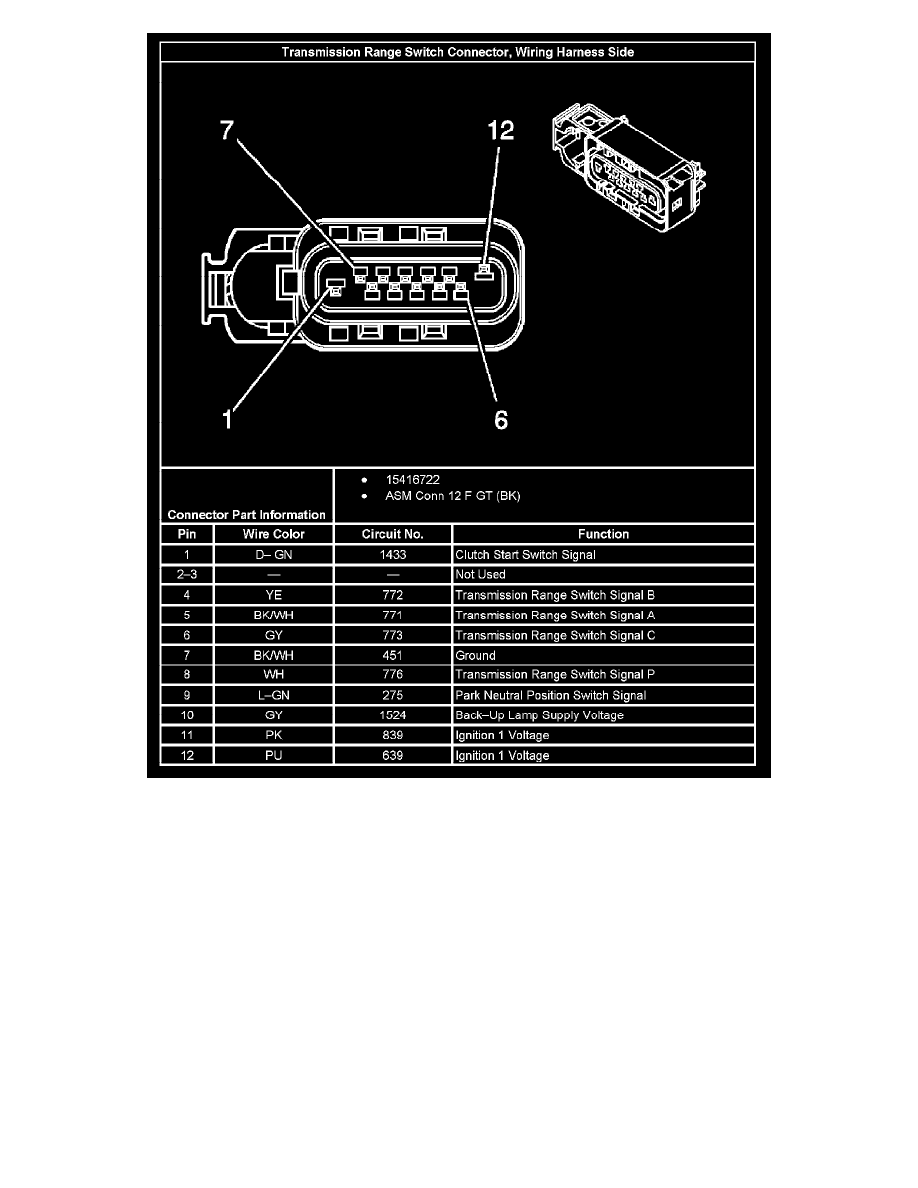

Transmission Range Switch Connector, Wiring Harness Side

Powertrain Management
Computers and Control Systems
Transmission Position Switch/Sensor, A/T
Component Information
Diagrams
4L60-E/4L65-E
