Sierra 2500 2WD V8-8.1L VIN G (2005)

Page 1
background image

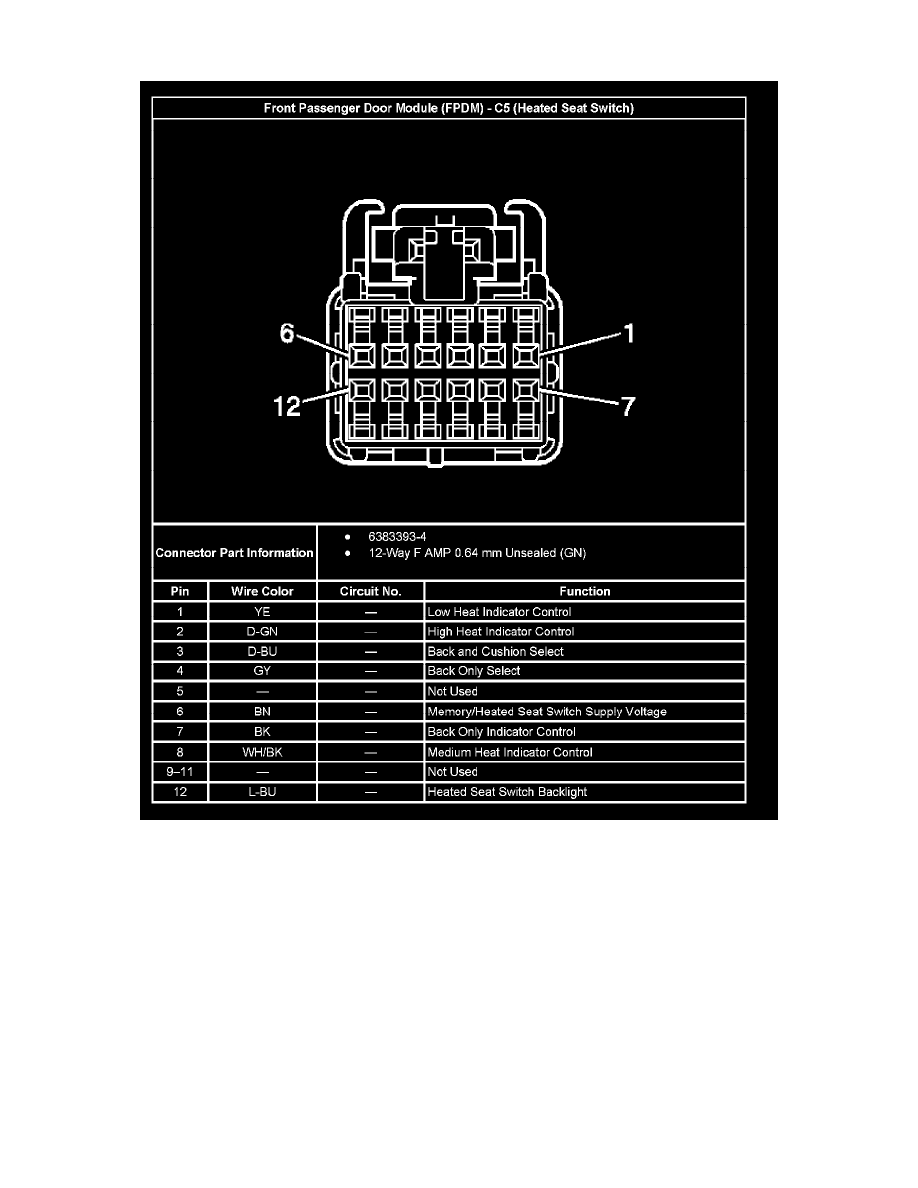

Door Module: Connector Views

Front Passenger Door Module (FPDM) - C5 (Heated Seat Switch)
