Sierra 2500 2WD V8-8.1L VIN G (2005)

  • Starting and Charging
  • Sensors and Switches - Starting and Charging
  • Clutch Switch
  • Component Information
  • Diagrams
  • Clutch Start Switch

Page 1
background image

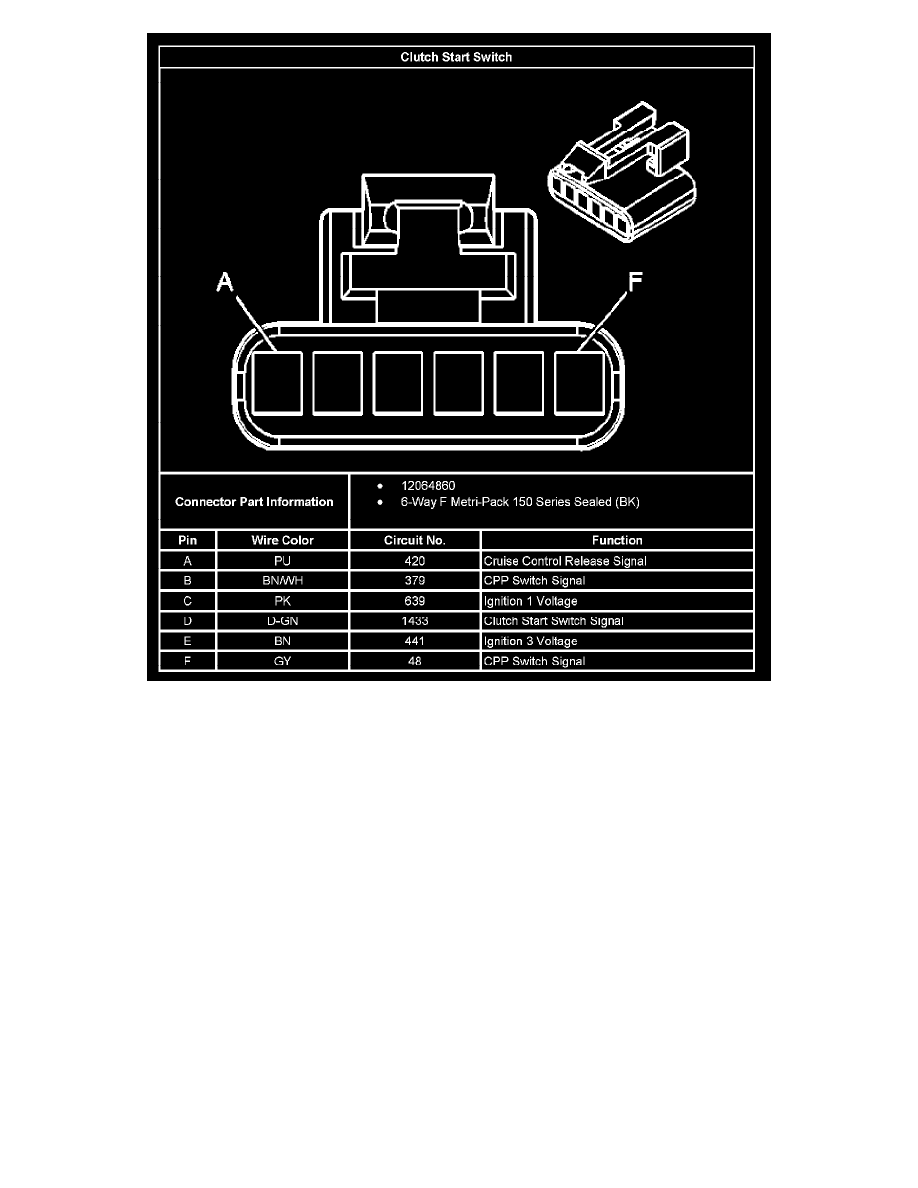

Clutch Start Switch

  • Starting and Charging
  • Sensors and Switches - Starting and Charging
  • Clutch Switch
  • Component Information
  • Diagrams
  • Clutch Start Switch
