Air Dam: Service and Repair

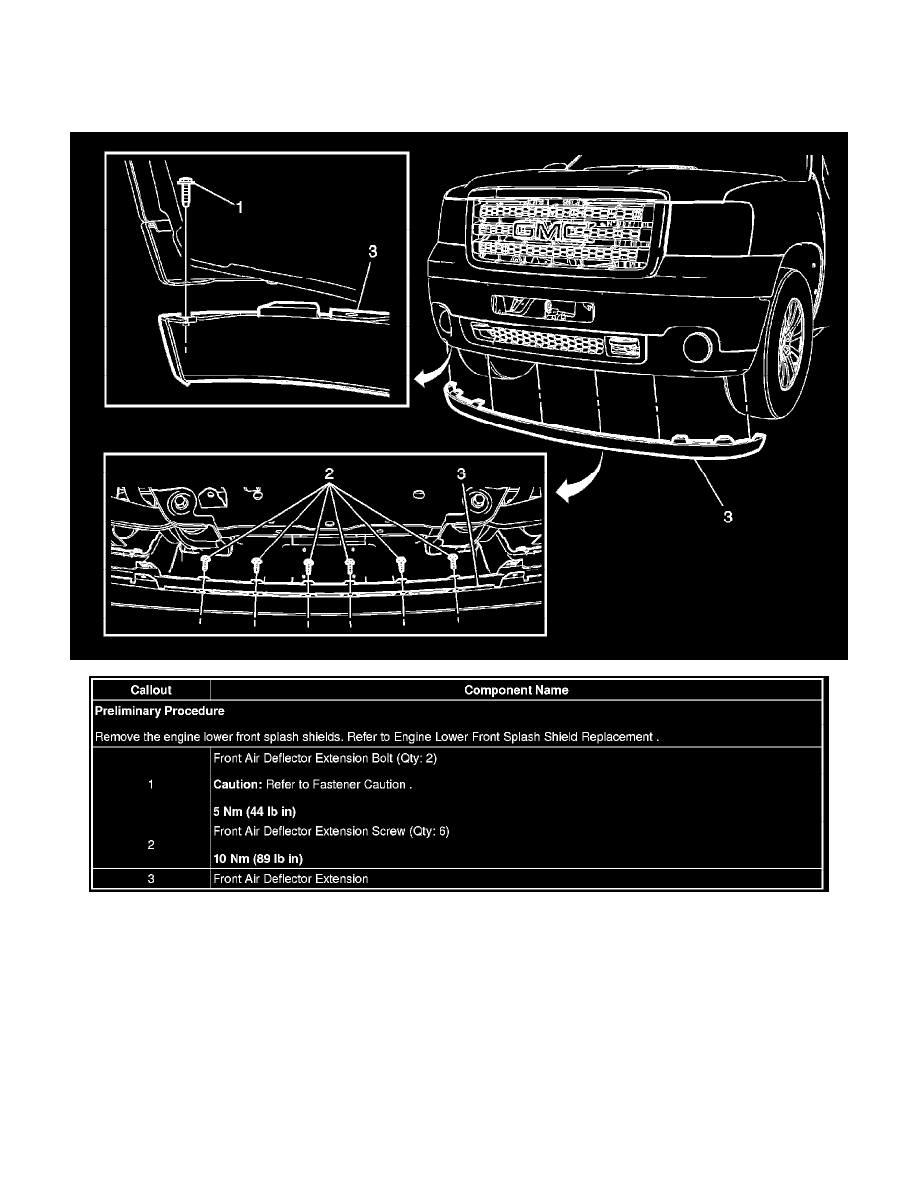

Front Air Deflector Extension Replacement

Front Air Deflector Extension Replacement (GMC)

Body and Frame
Spoilers, Flaps, and Air Dams
Air Dam
Component Information
Service and Repair
Front Air Deflector Extension Replacement
