Sierra 2500 Denali 4WD V8-6.0L (2011)
Auxiliary Battery Relay: Locations
Harness Routing Views

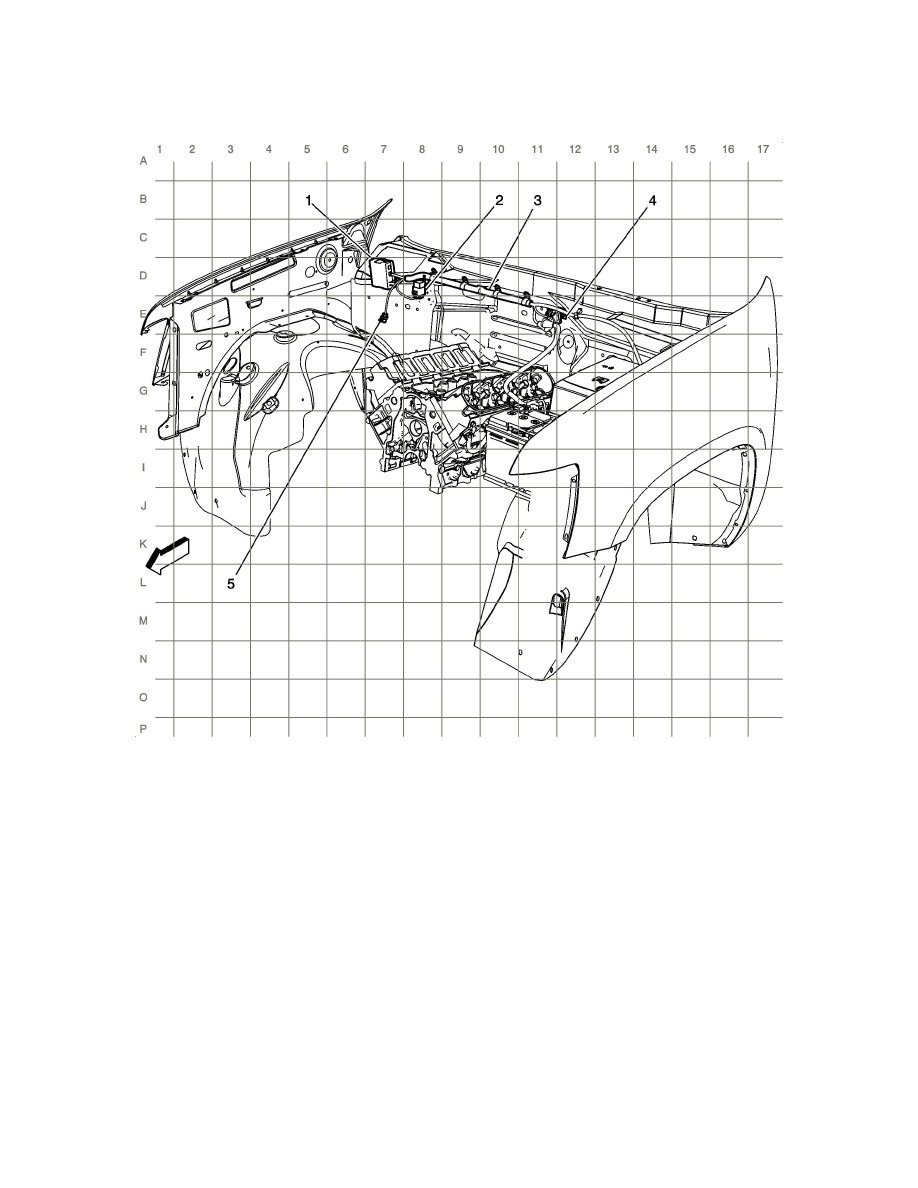

Auxiliary Battery Harness Routing (TP2)
1 - Fuse Holder
2 - Auxiliary Battery Run Relay
3 - Auxiliary Battery Harness
4 - Auxiliary Battery Relay
5 - X122
