Battery Current Sensor: Diagrams

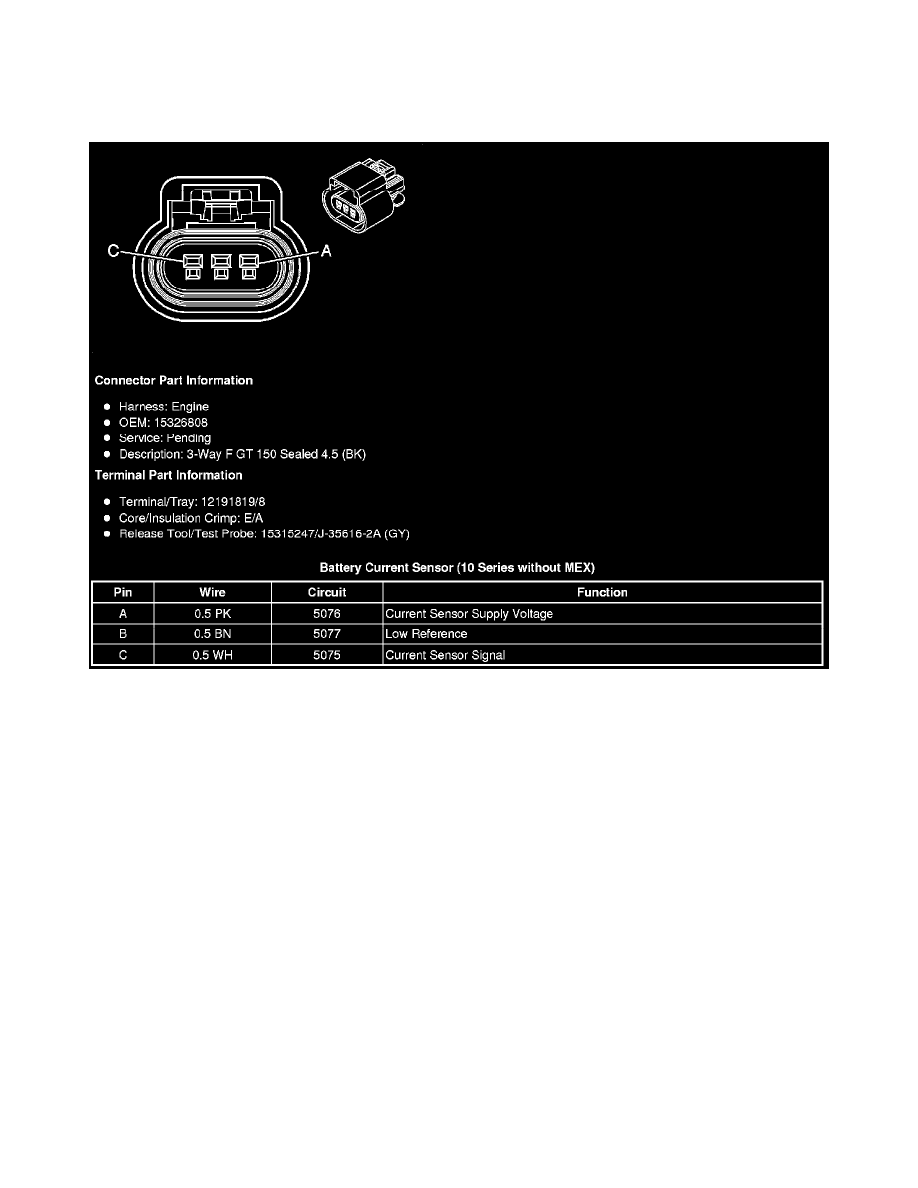

Component Connector End Views

Battery Current Sensor (10 Series without MEX)

Starting and Charging
Sensors and Switches - Starting and Charging
Battery Current Sensor
Component Information
Diagrams
