Sierra 3500 4WD V8-6.0L VIN U (2004)

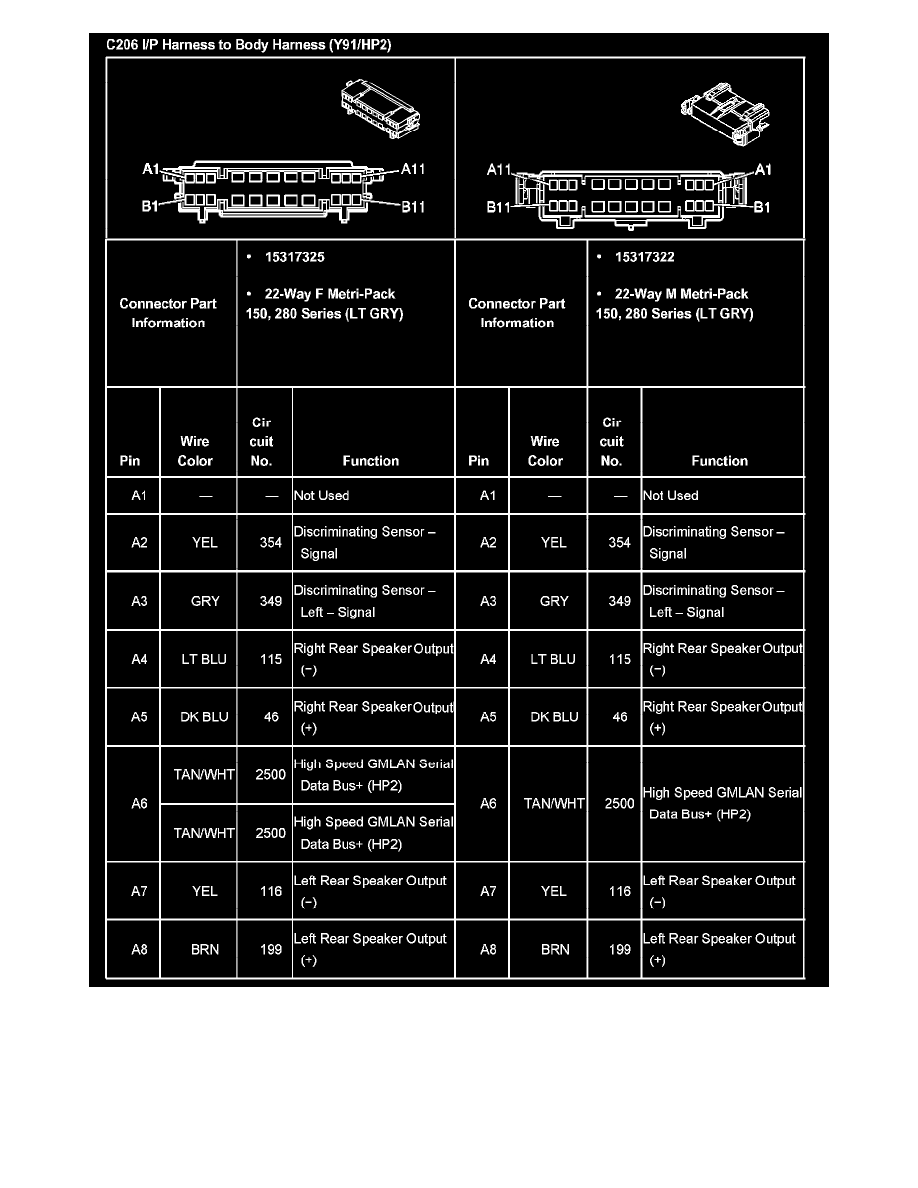

C206 I/P Harness To Body Harness (With RPO Codes Y91/HP2) Part 1
GMC Workshop Service and Repair Manuals
C100 - C198|Page 9074 >
< C100 - C198|Page 9072
Page 7
C206 I/P Harness To Body Harness (With RPO Codes Y91/HP2) Part 1
