Sierra 3500 Denali 2WD V8-6.0L (2011)

Page 1
background image

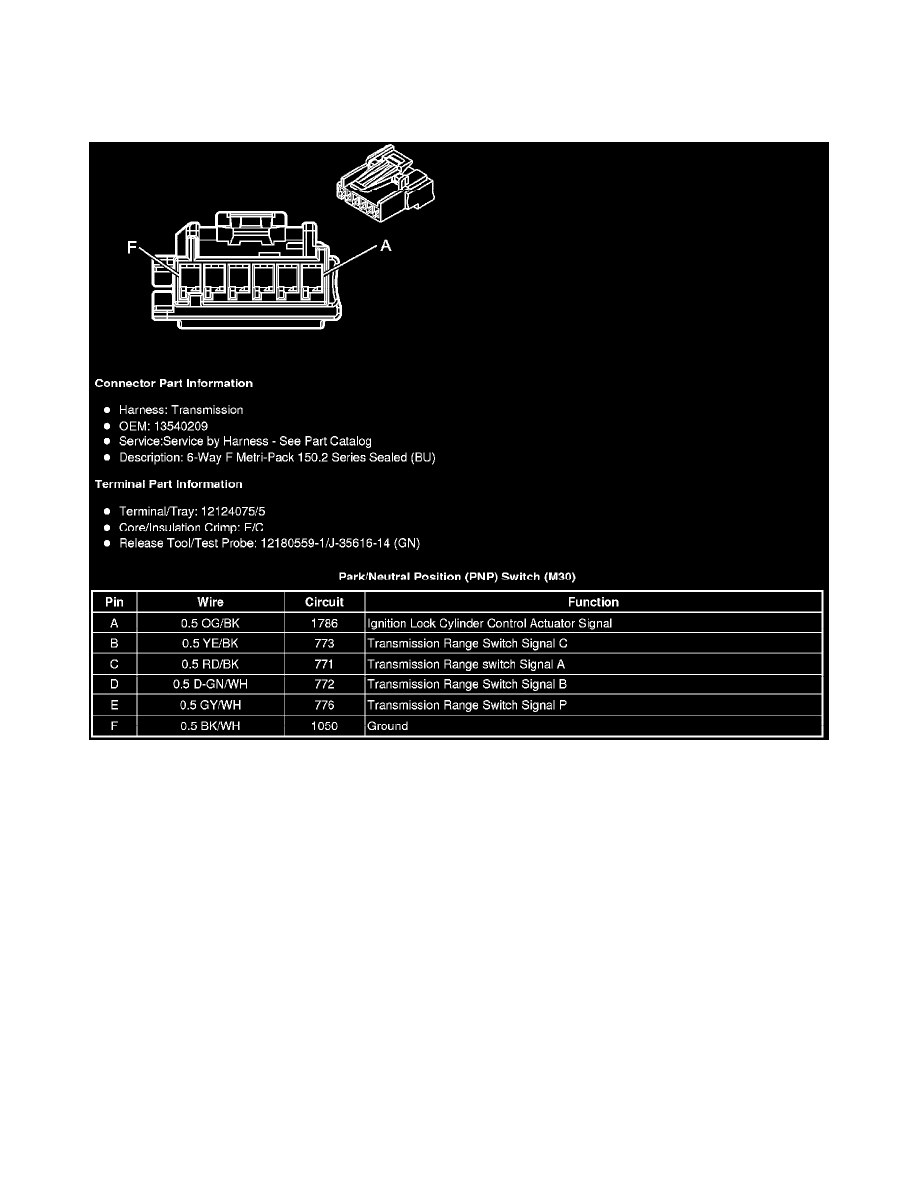

Transmission Position Switch/Sensor: Diagrams

Component Connector End Views

Park/Neutral Position (PNP) Switch (M30)
