Sierra Classic 3500 4WD V8-6.0L (2007)

  • Sensors and Switches
  • Sensors and Switches - Windows and Glass
  • Power Window Switch
  • Component Information
  • Diagrams

Page 1
background image

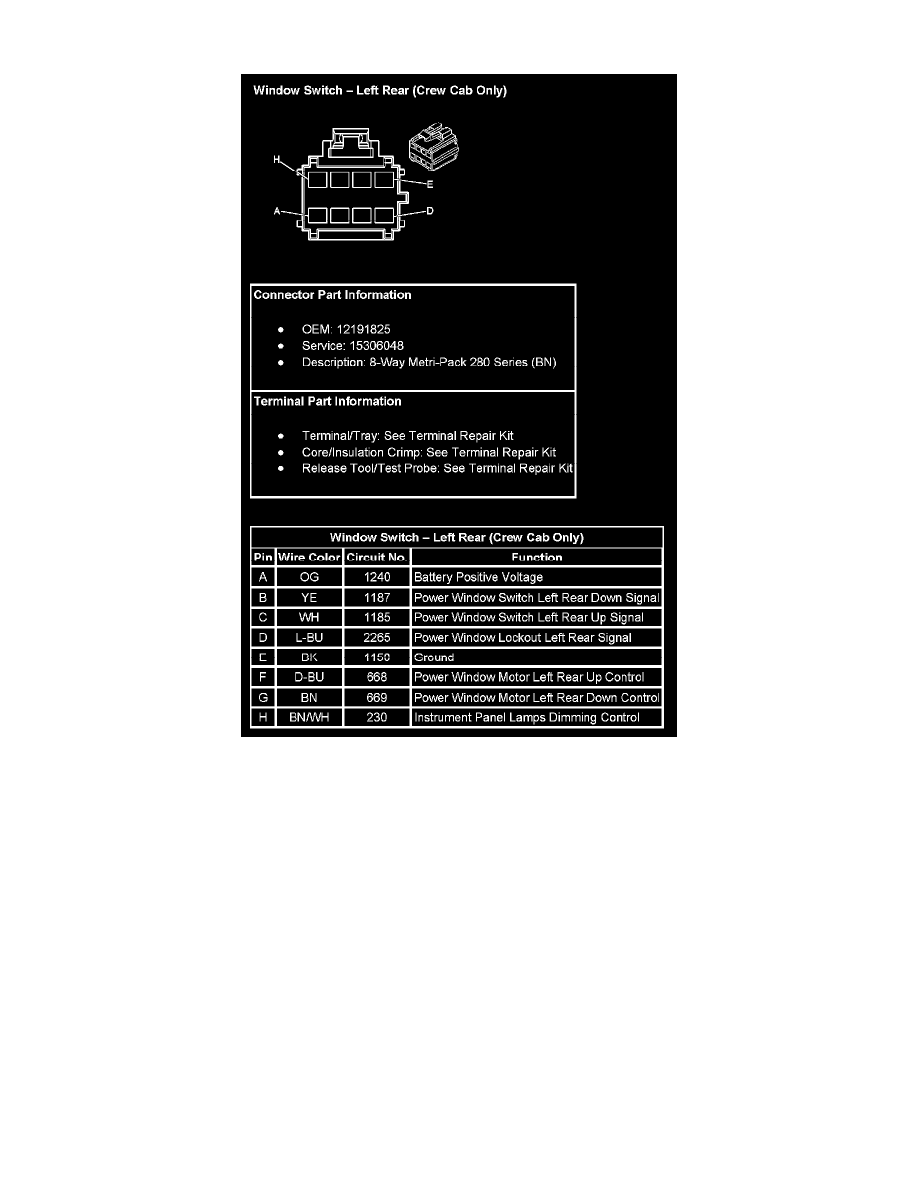

Power Window Switch: Diagrams

Window Switch - Left Rear (Crew Cab Only)

  • Sensors and Switches
  • Sensors and Switches - Windows and Glass
  • Power Window Switch
  • Component Information
  • Diagrams
