Sierra Denali V8-6.0L VIN N (2005)

  • Lighting and Horns
  • Door Switch
  • Component Information
  • Diagrams
  • Door Latch Assembly (Door Jamb Switch) - Driver

Page 1
background image

Door Switch: Diagrams
Door Latch Assembly (Door Jamb Switch) - Driver

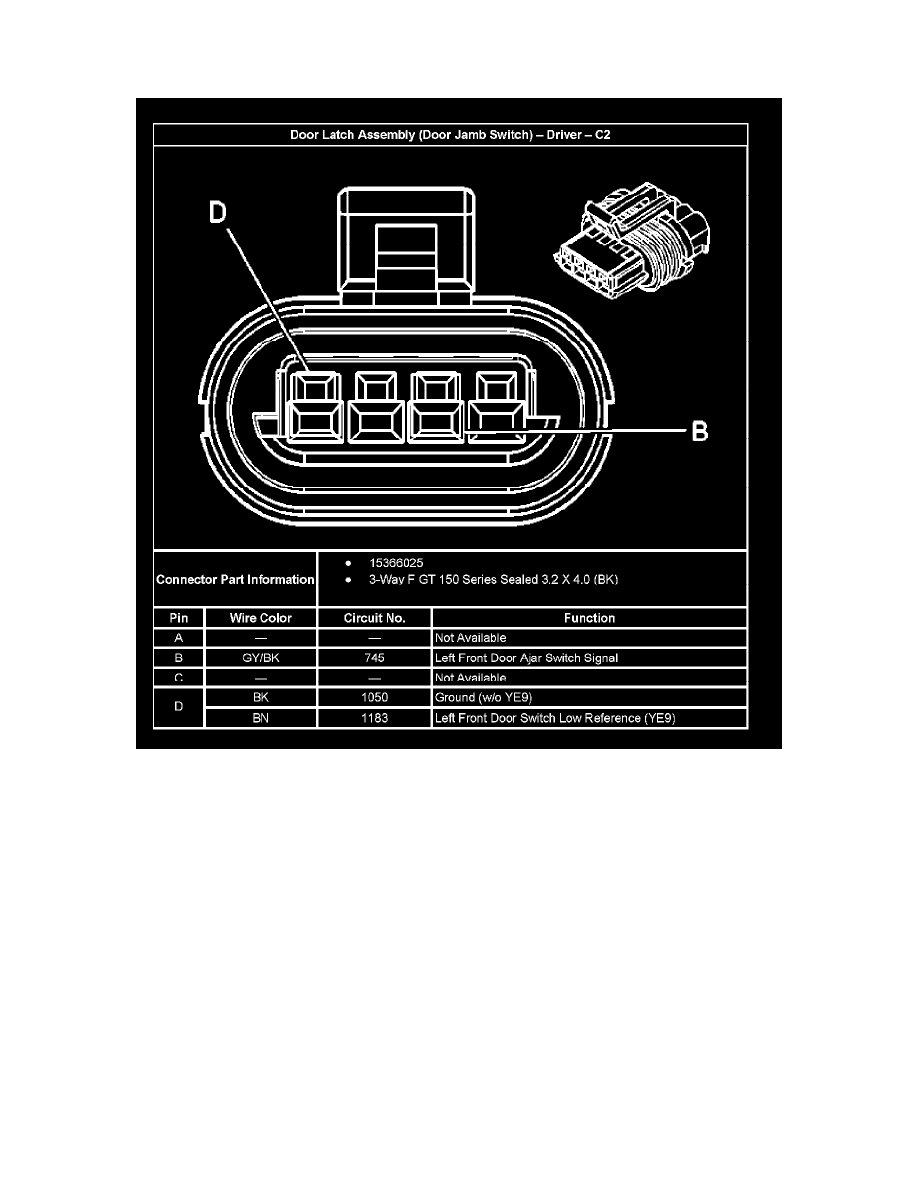

Door Latch Assembly (Door Jamb Switch) - Driver - C2
