Fuel Level Sensor|Diagrams|Page 7925 > < Diagram Information and Instructions|Page 7921

Sierra Denali AWD V8-6.2L (2008)

Page 1
background image

Fuel Level Sensor: Diagrams

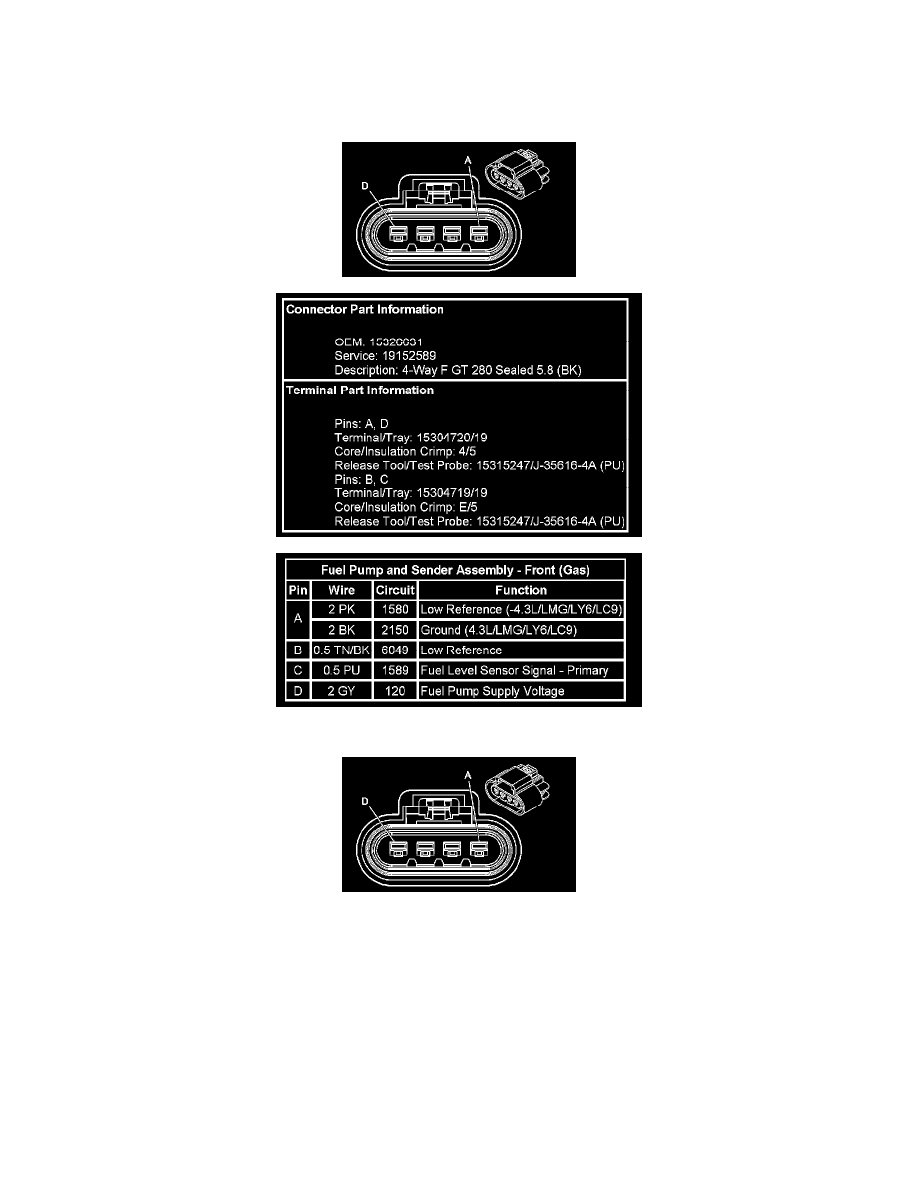

Component Connector End Views

Fuel Pump and Sender Assembly - Front (Gas)

Fuel Pump and Sender Assembly - Rear (Gas +LY6)
