Fuel Level Sensor|Diagrams|Page 5052 > < Component Locations|Page 5048

Sierra Denali RWD V8-6.2L (2009)

Page 1
background image

Fuel Level Sensor: Diagrams

Component Connector End Views

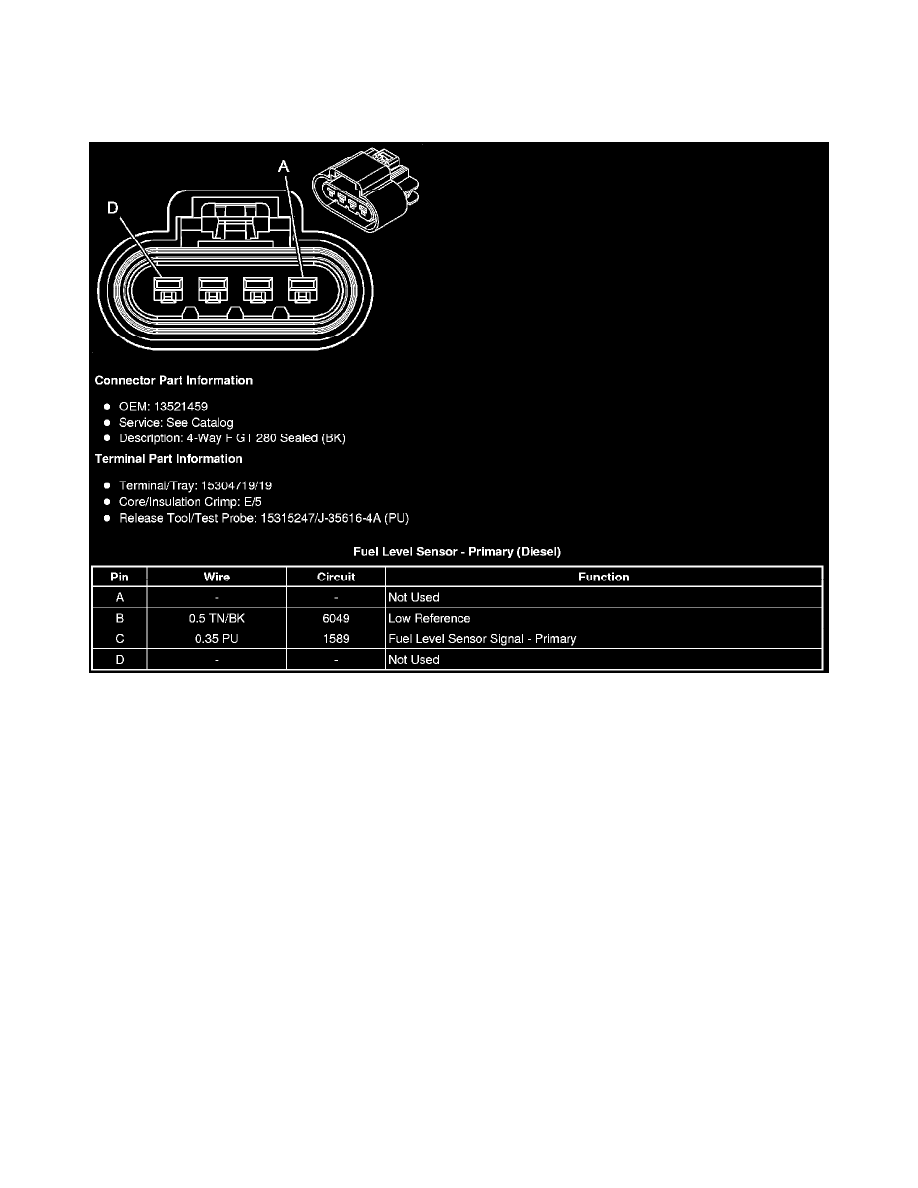

Fuel Level Sensor - Primary (Diesel)

Fuel Level Sensor - Secondary (Diesel with 31 Series without NQZ)
