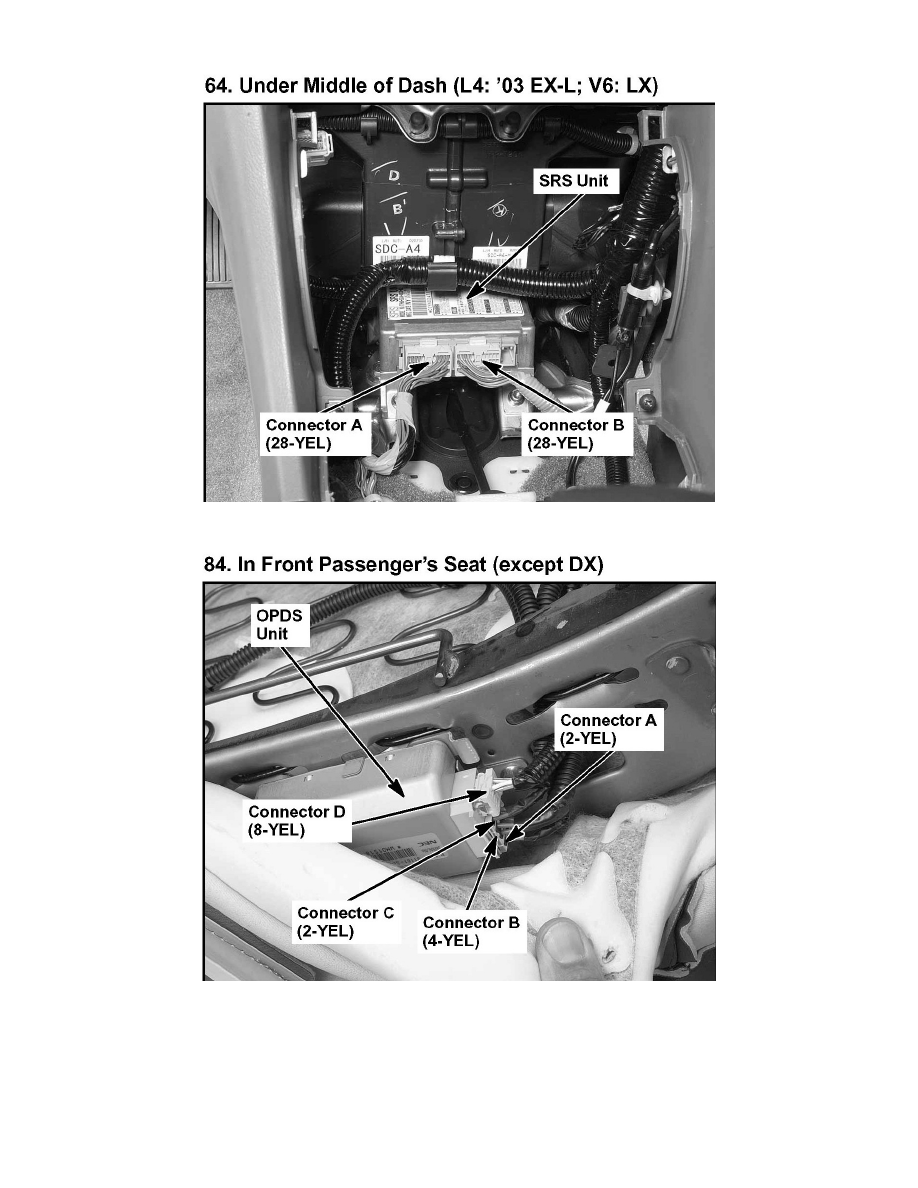

Air Bag Control Module: Locations

64. Under Middle Of Dash (L4:'03 EX-L; V6: LX)

84. In Front Passenger's Seat (Except DX)
