Accord EX Coupe V6-3.0L (2001)
Evaporator Core: Service and Repair
Removal and Installation
Evaporator Removal and Installation
1. Recover the refrigerant with a recovery/recycling/charging station.

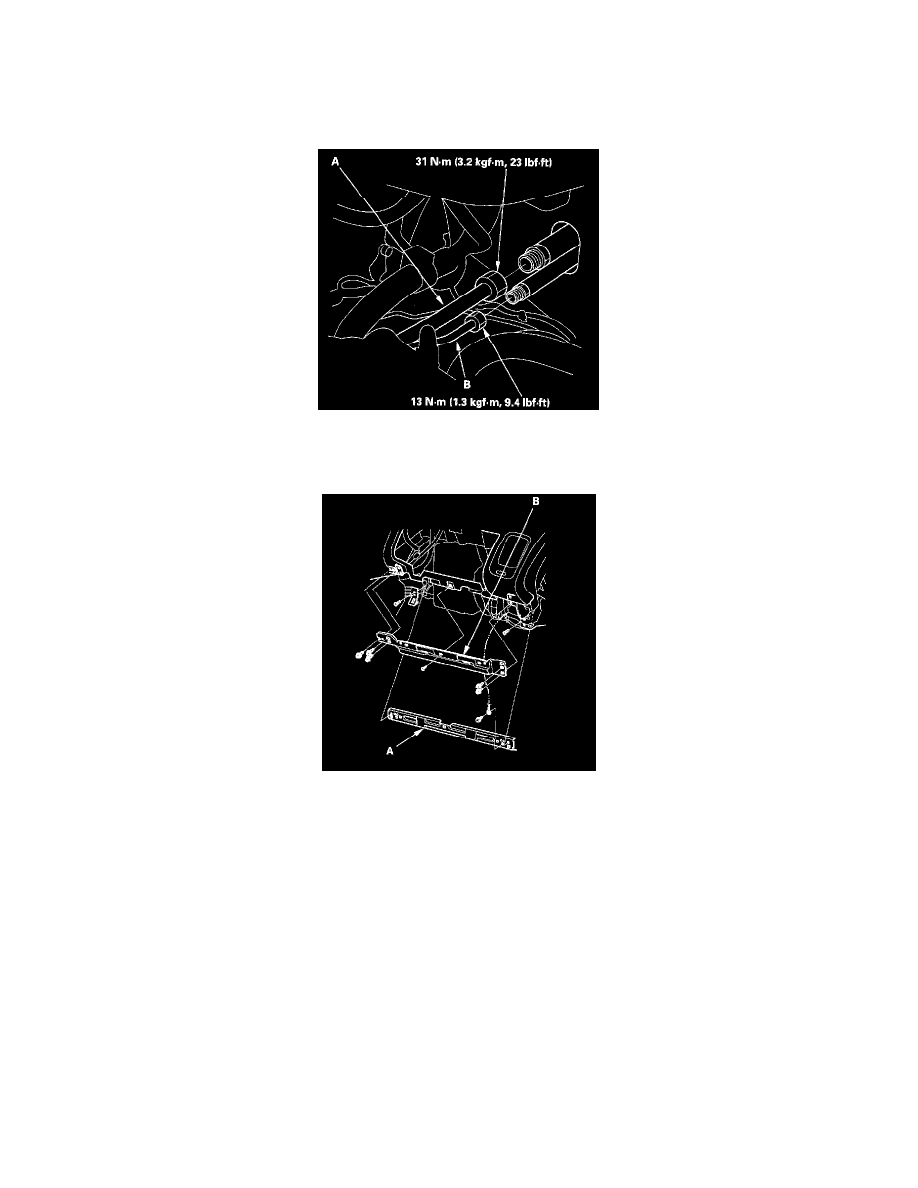

2. Disconnect the suction (A) and the receiver (B) lines from the evaporator. Plug or cap the lines immediately after disconnecting them to avoid
moisture and dust contamination.
3. Remove the glove box.
4. Remove the bolt, the screws and the glove box frame (A). Remove the self-tapping screw, the bolts and the passenger's knee bolster (B).
