Subframe: Service and Repair

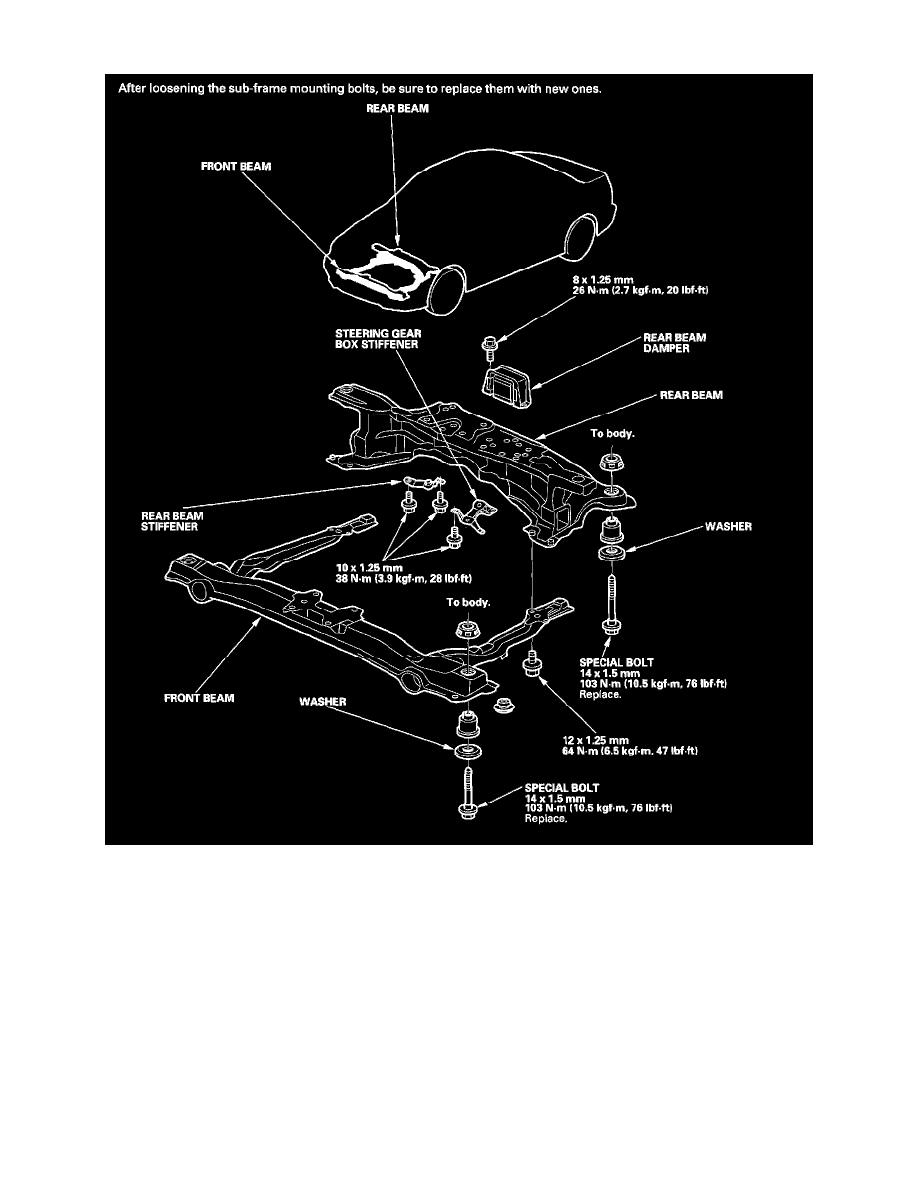

Sub-frame Replacement Part 1

Body and Frame
Frame
Subframe
Component Information
Service and Repair
