Civic L4-1.3L Hybrid (2008)
Rear Shelf: Service and Repair
Trim Removal/Installation - Rear Shelf Area
Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the Honda Tool and Equipment Program.
Rear Shelf
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
NOTE:
-
Put on gloves to protect your hands.
-
Take care not to bend or scratch the rear shelf and trim.
-
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Remove these items:
-
Rear seat cushion
-
Rear seat-back
-
Rear door opening seal, as needed
-
C-pillar trim, both sides

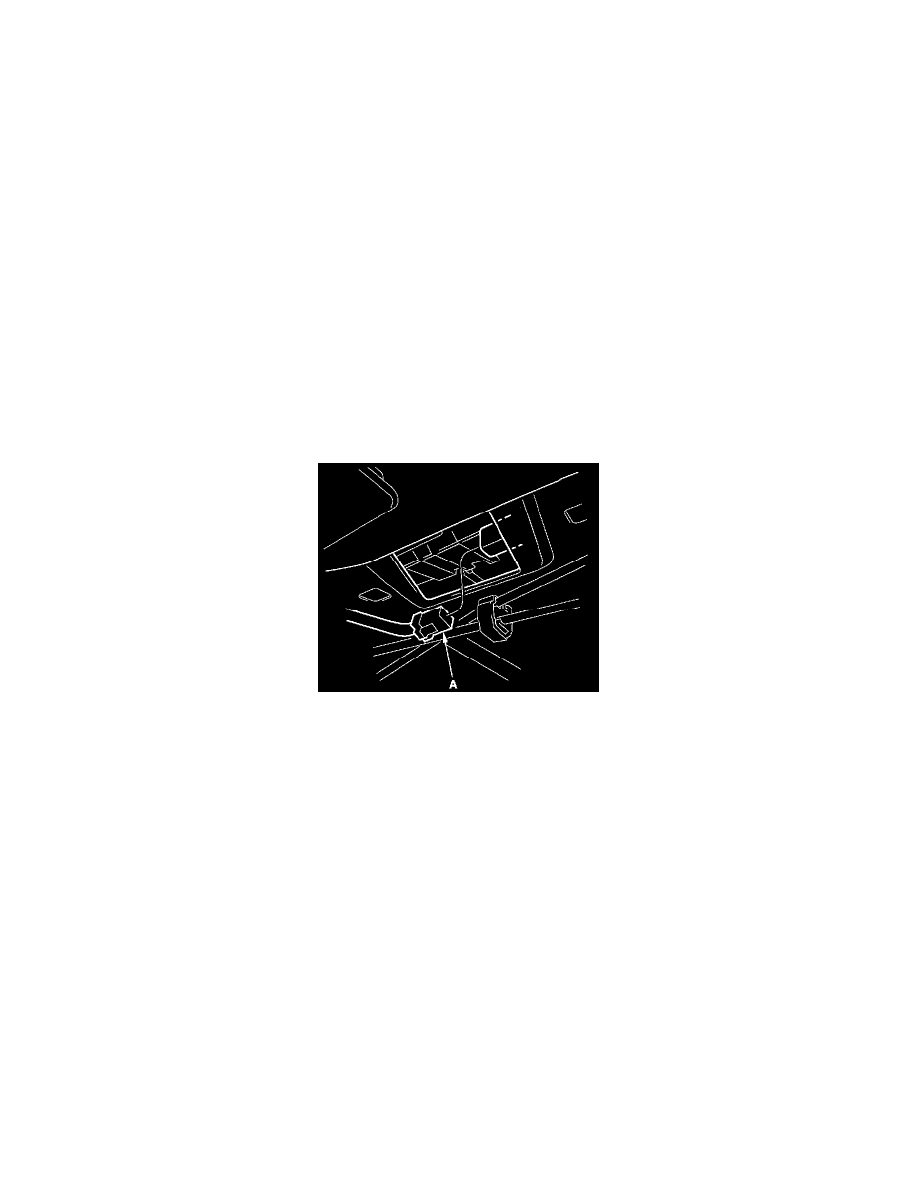

2. From the trunk compartment, disconnect the high mount brake light connector (A).
3. From the trunk compartment, release the six white clips by tapping on them.
