Civic L4-1.3L Hybrid (2008)
Hydraulic Brake Booster: Description and Operation
System Description

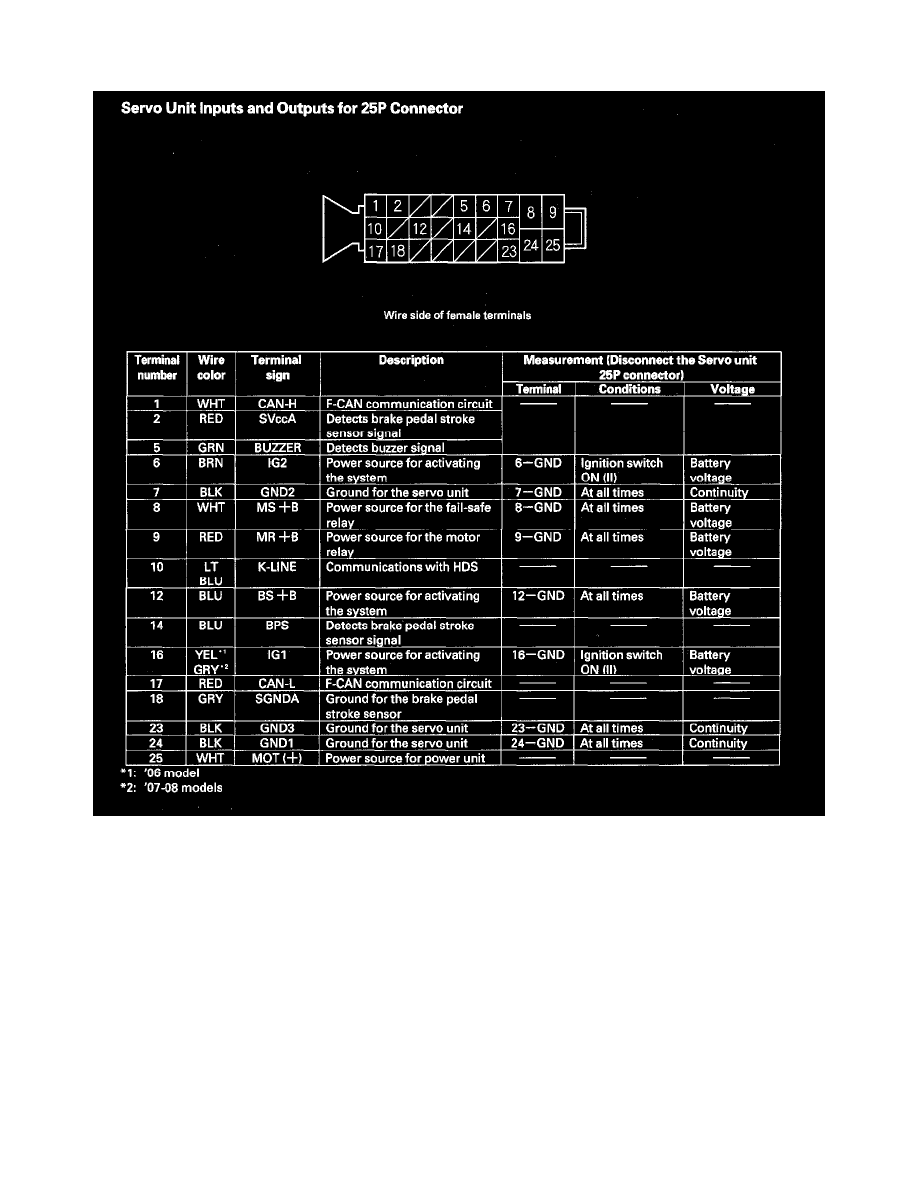

Servo Unit Inputs and Outputs for 25P Connector
System Communication
The advanced hydraulic booster system has a quick-reacting servo unit and a power unit functioning as a brake booster. This makes it possible to
stabilize the braking power while the auto idle stop is operating. This system can raise the brake fluid pressure control quickly, and it works in
conjunction with the other systems.
