Civic L4-1.3L Hybrid (2008)
5. Turn the ignition switch to LOCK (0).
6. Check the No. 63 (15 A) fuse in the auxiliary under hood fuse/relay box.
Is the fuse blown?
YES - Replace the No. 63 (15 A) fuse, and recheck.
NO - Reinstall the fuse, then go to step 7.
7. Disconnect the servo unit 25P connector.

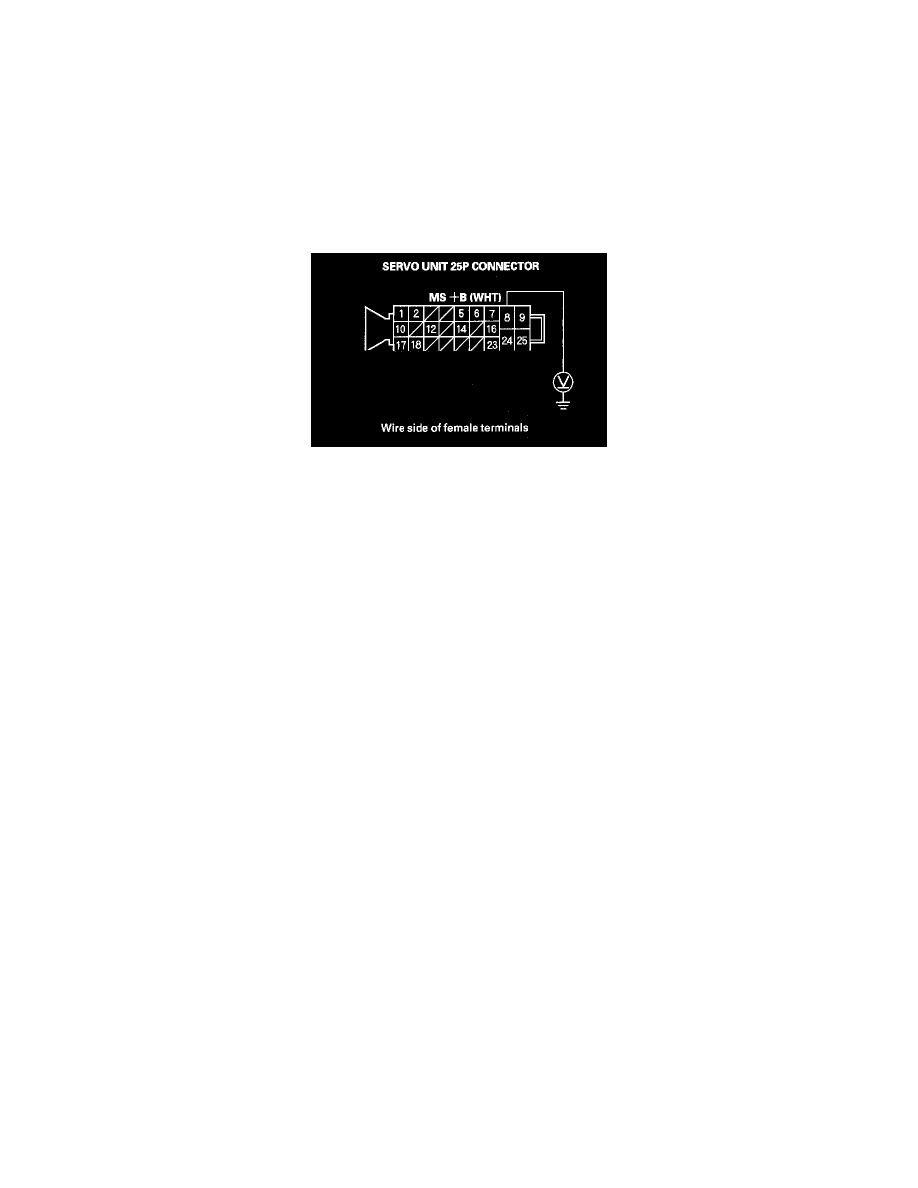

8. Measure the voltage between servo unit 25P connector terminal No. 8 and body ground.
Is there battery voltage?
YES - Replace the servo unit.
NO - Repair open in the wire between the No. 63 (15 A) in the auxiliary under-hood fuse/relay box and the servo unit.
Buzzer Does Not Sound (During the Buzzer Test)
Buzzer does not sound (during the buzzer test)
1. Turn the ignition switch to ON (II).
2. Do the BUZZER ON in the FUNCTION TEST with the HDS.
Does the buzzer sound?
YES - The system is OK at this time.
NO - Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 36 (10 A) fuse in the under-dash fuse/relay box.
Is the fuse blown?
YES - Replace the No. 36 (10 A) fuse, and recheck.
NO - Reinstall the fuse, then go to step 5.
5. Disconnect the buzzer 2P connector.
6. Turn the ignition switch to ON (II).
7. Measure the voltage between buzzer 2P connector terminal No. 2 and body ground.
