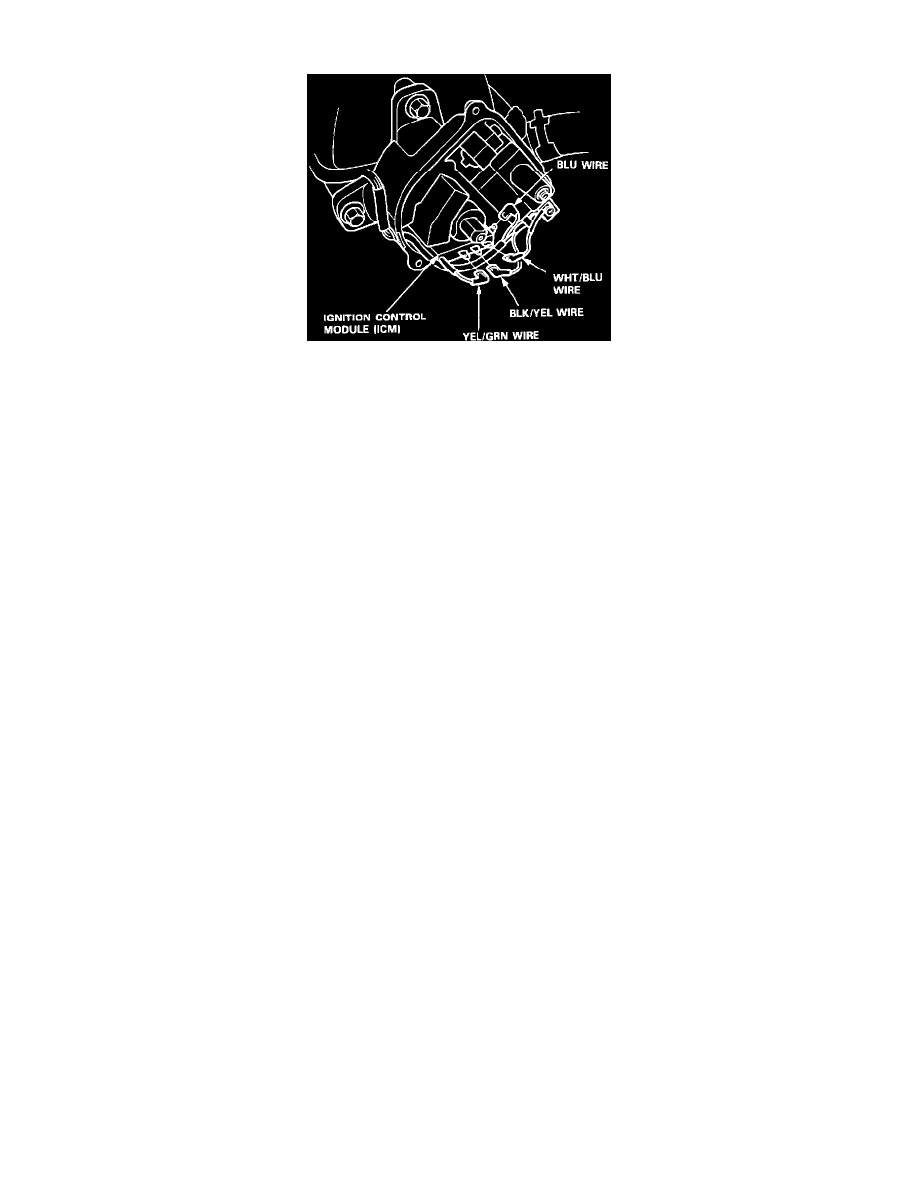

Igniter: Locations

Ignition Control Module

The Ignition Control Module (ICM) is located inside distributor assembly
